Product description
จำหน่ายโซ่ OCM BL (BL Leaf Chains)ระบบ ANSI/Single Pitch/MiscellaneousฺBL type Leaf Chains consists of link plates with the next larger thansize of OCM standard roller chains. It is chiefly used for mediumloads with greater shock.
OCM "H" (Heavy Duty Roller Chains)ระบบ ANSI/Single Pitch/Heavy DutyH type roller chains have increased the link plate thickness to providegreater capacity without fatigue failure. The link plate thicknessis that on the next large size chains. Single strand chainsNo. OCM 50-1H, OCM 50-2H, OCM 50-3 H.
OCM SB (Side Bow Roller Chains)ระบบ ANSI/Single Pitch/MiscellaneousSB type roller chains provide extra clearance between pinsbushing and link plates and give the chain freedom to slightlytwist or curve on a horizontal plate
OCM TR (Top of Roller Chains)ระบบ ANSI/Single Pitch/AttachmentsTR (Top Roller Chains) type roller chains are based on OCM standardroller chains with extra rollers mounted on top of the chains.Top rollers are installed on the pin that connect SK-1 extended attachment plates. The rollers are available in carbon steel, stainless steel or low friction plastic. OCM No. 40-1TR, No 50-1TR Construction of OCM Roller ChainsRoller chain is made of roller link and pin linksRoller links consists of two bushing press-fitted into roller link platewith two free rotating rollers over the bushings. Pin links consistsof two pins links plates into which two pins are press-fitted.
There are two types of pins: Rivet (Spring Clips) and Cotter types
1) Rivet (Spring Clips) Type This is standard for all single and multiple strand ANSI standard chain 80 and below and British standard chain 16B and below
2) Cotter Type This is standard for all single and multiple strand ANSI standard chain 100 and above and British standard chain 20B and above
3) Offset Links This is a combination of roller link and pin links. This link is used when the chain length is odd number of pitches. It is recommended not to be whenever possible.
4) Two Pitches Offset Links The unit consists of one offset link and one roller link Pins are press-fitted into the link plate and the unit is more suitable for heavy impact load and high-speed driving than one pitch offset links.
1) OCM Stainless Roller Chain SUS Series This chain is made of 304 (austenitic) stainless steel. This chain has excellent corrosive resistance very low magnetic This chain is good for acid, alkali, water, etc. Heat resistance.
2) OCM Stainless Roller Chain SAC Series This chain is made of 316 (austenitic) stainless steel. This is better in corrosive resistance than SUS Series. Spring clips and cotter used are made of 304 stainless steel. Heat resistance.
3) OCM Stainless Roller Chain SPH Series The pin, bush and roller of this chain are made of 600 Series precipitation hardened stainless with link plate of 304 stainless steels. Spring clips and cotter used are made of 304 stainless steels. The working load of this chain is 1.5 times SUS Series.
Construction of OCM Conveyors ChainsThere are many types of chain for conveyors applications butsteel chains for conveyors are popular and widely used.OCM FM and FE chain for conveyors are superior to othertype in strength wear-resistance and the characteristic thatchanges in material and attachments are readily made according to applications.
Conveyor Type By Roller 1) R Roller The outside of diameter of roller is larger than the height of link plate. This type is used mainly for slat, pallet, tight conveyors

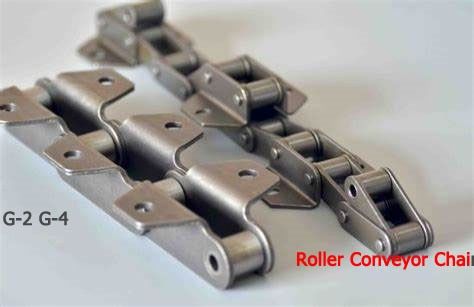

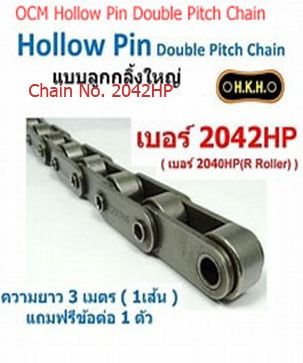

2) F Roller Flanged roller. This type is widely used on slat, inclined bucket, pan conveyors 3) S Roller The outside of diameter of roller is smaller than the height of link plate. This is used for bucket elevator and flow conveyors Standard Attachments: Attachments are attached according to requirementsThere are three basic types are standard1) Type A, A-1 indicates one hole, A-2 indicates two holes2) Type K, K-1 indicates one hole, K-2 indicates two holes3) Type G, G-2 indicates two holes, G-4 indicates four holes OCM Hollow Pin Double Pitch Chain (แบบลูกกลิ้งใหญ่)ความยาว 3 เมตร จำนวน 1 เส้น แถมฟรีข้อต่อเต็มข้อ C/L จำนวน 1 ตัวHollow Pin Roller Chain No. 2042 HP, 2052 HP, 2062 HP, 2082 HPแบบลูกกลิ้งใหญ่ โซ่แกนกลวง โซ่แกนทะลุ โซ่ดับเบิ้ลฟิทช์แบบลูกกลิ้งใหญ่โซ่อุตสาหกรรม โซ่ HKH
OCM Roller Chain (Simplex)โซ่แบบลูกกลิ้งที่มีความแม่นยำเป็นโซ่เชิงกลประเภทหนึ่งที่ใช้กันทั่วไปสำหรับการส่งกำลังในเครื่องอุตสาหกรรม เช่นสายพานลำเลีบงเครื่องจักรและอุปกรณ์อัตโนมัติประกอบด้วยชุดโลหะที่เชื่อมต่อถึงกัน
OCM 06B-3 Roller Chainsระบบ BS/Single Pitch/ANSI/DINSteel Roller Chain No. 06B-3, 10 ft/box ในกล่องบรรจุ โซ่ จำนวน 1 เส้นความยาว 10 ฟุต = 3 เมตร แถมฟรี ข้อต่อโว่เต็มข้อ C/L จำนวน 1 ตัว

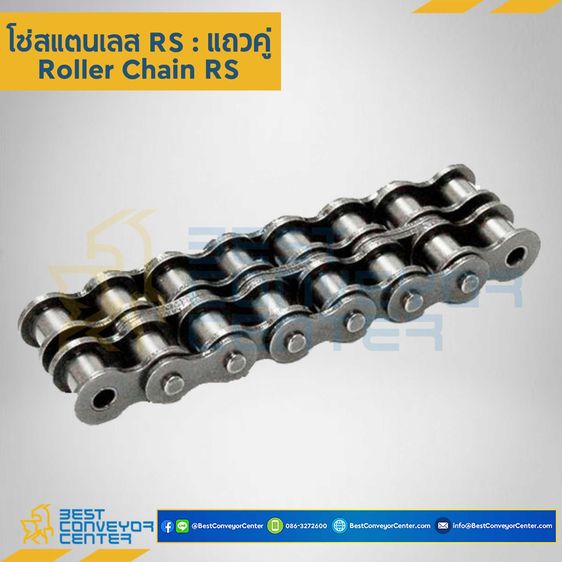

OCM Double Stainless Roller Chainsระบบ ANSI standard, Stainless Steel Roller Chains/Double Strandระบบ ANSI standard วัสดุ = Stainless SUS 304 เกรด ASee More
OCM "H" (Heavy Duty Roller Chains)ระบบ ANSI/Single Pitch/Heavy DutyH type roller chains have increased the link plate thickness to providegreater capacity without fatigue failure. The link plate thicknessis that on the next large size chains. Single strand chainsNo. OCM 50-1H, OCM 50-2H, OCM 50-3 H.
OCM SB (Side Bow Roller Chains)ระบบ ANSI/Single Pitch/MiscellaneousSB type roller chains provide extra clearance between pinsbushing and link plates and give the chain freedom to slightlytwist or curve on a horizontal plate
OCM TR (Top of Roller Chains)ระบบ ANSI/Single Pitch/AttachmentsTR (Top Roller Chains) type roller chains are based on OCM standardroller chains with extra rollers mounted on top of the chains.Top rollers are installed on the pin that connect SK-1 extended attachment plates. The rollers are available in carbon steel, stainless steel or low friction plastic. OCM No. 40-1TR, No 50-1TR Construction of OCM Roller ChainsRoller chain is made of roller link and pin linksRoller links consists of two bushing press-fitted into roller link platewith two free rotating rollers over the bushings. Pin links consistsof two pins links plates into which two pins are press-fitted.
There are two types of pins: Rivet (Spring Clips) and Cotter types
1) Rivet (Spring Clips) Type This is standard for all single and multiple strand ANSI standard chain 80 and below and British standard chain 16B and below
2) Cotter Type This is standard for all single and multiple strand ANSI standard chain 100 and above and British standard chain 20B and above
3) Offset Links This is a combination of roller link and pin links. This link is used when the chain length is odd number of pitches. It is recommended not to be whenever possible.
4) Two Pitches Offset Links The unit consists of one offset link and one roller link Pins are press-fitted into the link plate and the unit is more suitable for heavy impact load and high-speed driving than one pitch offset links.
1) OCM Stainless Roller Chain SUS Series This chain is made of 304 (austenitic) stainless steel. This chain has excellent corrosive resistance very low magnetic This chain is good for acid, alkali, water, etc. Heat resistance.
2) OCM Stainless Roller Chain SAC Series This chain is made of 316 (austenitic) stainless steel. This is better in corrosive resistance than SUS Series. Spring clips and cotter used are made of 304 stainless steel. Heat resistance.
3) OCM Stainless Roller Chain SPH Series The pin, bush and roller of this chain are made of 600 Series precipitation hardened stainless with link plate of 304 stainless steels. Spring clips and cotter used are made of 304 stainless steels. The working load of this chain is 1.5 times SUS Series.
Construction of OCM Conveyors ChainsThere are many types of chain for conveyors applications butsteel chains for conveyors are popular and widely used.OCM FM and FE chain for conveyors are superior to othertype in strength wear-resistance and the characteristic thatchanges in material and attachments are readily made according to applications.
Conveyor Type By Roller 1) R Roller The outside of diameter of roller is larger than the height of link plate. This type is used mainly for slat, pallet, tight conveyors
2) F Roller Flanged roller. This type is widely used on slat, inclined bucket, pan conveyors 3) S Roller The outside of diameter of roller is smaller than the height of link plate. This is used for bucket elevator and flow conveyors Standard Attachments: Attachments are attached according to requirementsThere are three basic types are standard1) Type A, A-1 indicates one hole, A-2 indicates two holes2) Type K, K-1 indicates one hole, K-2 indicates two holes3) Type G, G-2 indicates two holes, G-4 indicates four holes OCM Hollow Pin Double Pitch Chain (แบบลูกกลิ้งใหญ่)ความยาว 3 เมตร จำนวน 1 เส้น แถมฟรีข้อต่อเต็มข้อ C/L จำนวน 1 ตัวHollow Pin Roller Chain No. 2042 HP, 2052 HP, 2062 HP, 2082 HPแบบลูกกลิ้งใหญ่ โซ่แกนกลวง โซ่แกนทะลุ โซ่ดับเบิ้ลฟิทช์แบบลูกกลิ้งใหญ่โซ่อุตสาหกรรม โซ่ HKH
OCM Roller Chain (Simplex)โซ่แบบลูกกลิ้งที่มีความแม่นยำเป็นโซ่เชิงกลประเภทหนึ่งที่ใช้กันทั่วไปสำหรับการส่งกำลังในเครื่องอุตสาหกรรม เช่นสายพานลำเลีบงเครื่องจักรและอุปกรณ์อัตโนมัติประกอบด้วยชุดโลหะที่เชื่อมต่อถึงกัน
OCM 06B-3 Roller Chainsระบบ BS/Single Pitch/ANSI/DINSteel Roller Chain No. 06B-3, 10 ft/box ในกล่องบรรจุ โซ่ จำนวน 1 เส้นความยาว 10 ฟุต = 3 เมตร แถมฟรี ข้อต่อโว่เต็มข้อ C/L จำนวน 1 ตัว
OCM Double Stainless Roller Chainsระบบ ANSI standard, Stainless Steel Roller Chains/Double Strandระบบ ANSI standard วัสดุ = Stainless SUS 304 เกรด ASee More
