Product description

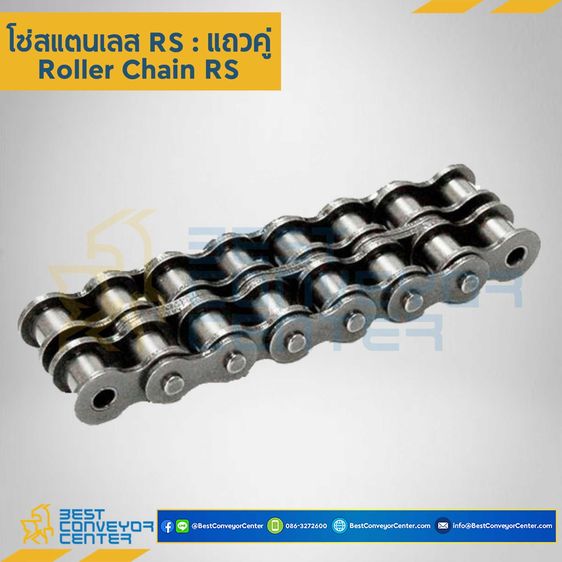

OCM 20B-2R Roller Chains (โซ่เหล็กแถวคู่) Material S45C1) Steel Roller Chain No. 20B-2R 10ft/box 2) ในกล่องบรรจุ โซ่จำนวน 1 เส้น และแถมฟรีข้อต่อโซ่เต็มข้อ C/L 1 ตัว3) ระบบ ISO/DIN/ANSI standard.
OCM TR (Top of Roller Chains) ระบบ ANSI/Single Pitch/AttachmentsTR (Top of Roller Chains) type roller chains are based on OCM standard roller chains with extra mounted on top of the chainsTop rollers are installed on the pins that connect SK-1 extendedattachments plates.
OCM "DC" type and "TC" type Roller Chainsระบบ BS/Single Pitch/Heavy Duty"DC" type roller chain consists of twice the number of side platesas the single strand chain as the working load is close to thestandard double strand chains. .
OCM H (Heavy Roller Chains)"H" type roller chains have increase link plate thickness to providegreater capacity without fatigue failure. The link thickness is thatof the next larger size chains. Single strand roller chains of "H"type run on standard roller chain sprockets OCM Chain No..50-1H,
1) OCM Stainless Roller Chain SUS Series This chain is made of 304 (austenitic) stainless steel. This chain has excellent corrosive resistance and non-magnetic. This chain is good for acid, alkali, water, etc. Heat resistance2) OCM Stainless Roller Chain SAC Series This chain is made of 316 (austenitic) stainless steel. This chain is better corrosive resistance than SUS Series. Spring clips and cotter used are made of 304 stainless steel. Heat resistance.3) OCM Stainless Roller Chain SPH Series The pin, bush and roller of these chains are made of 600 Series precipitation hardened stainless with link plate of 304 stainless steels. Spring clips and cotter used are made of 304 stainless steels. Magnetic, Better wear-resistance. The working load of this chain is 1.5 times SUS Series.
Construction of OCM Roller ChainsRoller chain is made of roller link and pin linkRoller link consists of two bushings press-fitted into roller link platewith two free rotating rollers over the bushings. Pin links consistsof two pin links plates into which two pins are press-fitted.
There are two types of pins: Rivet (Spring Clips) and Cotter types1) Rivet (Spring Clips) This is standard for all single and multiple strand ANSI standard chain 80 and below and British standard chain 16B and below2) Cotter Type This is standard for all single and multiple strand ANSI standard chain 100 and above and British standard chain 20B and above3) Offset Link. Offset Link is a combination of roller link and pin link. This link is used when the chain length is odd number of pitch. It is recommended not to be used one offset link whenever possible.4) Two Pitches Offset Link The unit consists of one offset link and one roller link. Pins are press-fitted into the link plates and the unit is more suitable for heavy impact load, high-speed driving than one pitch offset link.
Construction of OCM Conveyors ChainsThere are many types of chains for conveyors application but steelconveyors chains are popular and widely used. OCM FM and FEtypes of conveyors chains are superior to other type in strengthwear-resistance and the characteristic that changes materialand attachments are readily made according to an application.Conveyor Type by Roller1) R Roller. The outside of diameter of roller is larger than the height of link plate This type of conveyor is used mainly for slat, pallet, tight conveyors.2) F Roller. Flanged roller. This type is widely used on slat, pallet, pan conveyor.3) S Roller The outside of diameter of roller is smaller than the height of link plate. This is used for bucket elevator, flow conveyors.Standard Attachments:Attachments are attached according to requirementsThere are three basic types are standard1) Type A, A-1 indicates one hole, A-2 indicates two holes2) Type K, K-1 indicates one hole, K-2 indicates two holes3) Type G, G-2 indicates two hole, G-4 indicates four holes
OCM 06B-3 Roller Chains ระบบ ANSI, Single Pitch/ANSI/DINSteel Roller Chain No. 06B-3 10ft/box ในกล่องบรรจุโซ่ จำนวน 1 เส้นความยาว 3เมตร = 10 ฟุต แถมฟรีข้อต่อโซ่เต็มข้อ C/L จำนวน 1 ตัว
OCM TR (Top of Roller Chains) ระบบ ANSI/Single Pitch/AttachmentsTR (Top of Roller Chains) type roller chains are based OCM standard roller chains with extra roller mounted on top of the
OCM ND SELUBE CHAINS subject to special treatment has been improved its wear resistance more than 4 times compared withOCM SELUBE CHAIN. In the ordinary temperature range.It is suitable to extend the time for replacements of SELUBE chains,
OCM Self-Lube Roller Chains ระบบ ANSI/Double Pitch/Lube Free/SLRSLR type roller chains carry its own high-quality lubrication inimpregnated bushings. The sinter bushing keeps lubricationin the critical bearings areas of the pin and bushing where it is

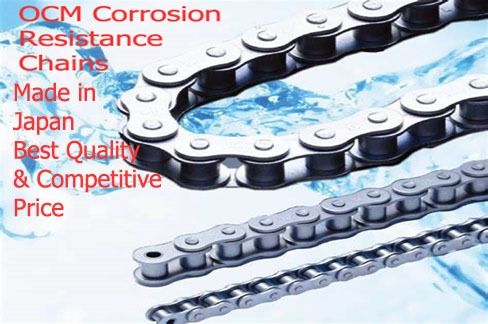

OCM Corrosion Heat Resistance Chain (โซ่ที่ทนต่อการกัดกร่อน)โซ่ที่ทนต่อการกัดกร่อน ใช้กรรมวิธีพิเศษในการบำบัดพื้นผิวสำหรับชิ้นส่วนหรือใช้ชิ้นส่วนที่ทำจากพลาสติควิศวกรรม สแตนเลส เพื่อให้ได้ทนทานต่อการกัดกร่อน โดยดีเยี่ยมเป็นไปตามมาตรฐาน

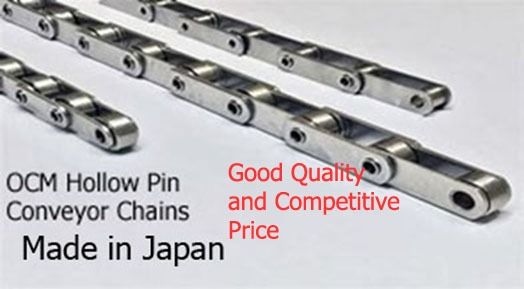

OCM Hollow Pin Conveyors Chains ระบบ ISO (Institute StandardOrganization) โซ่ที่มีหมุดแบบกลวงมีโครงสร้างคล้ายลูกกับโซ่ลูกกลิ้งมาตรฐาน ISO ประกอบด้วยหมุดกลวงพุ่มและแผ่น เส้นผ่าศูนย์กลางของหมุด

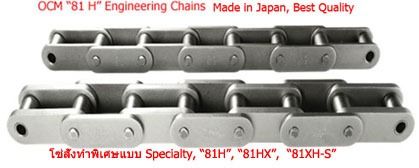

OCM โซ่เหล็กสั่งทำแบบ Specialty (โซ่สั่งทำพิเศษ)OCM Products have three different types of 81X chains:"81X", "81XH" and "81XH-S". Each type is designed with differenttype link plate thickness and height to strength
OCM Double Pitch Hollow Pin Chains, A double pitch hollow pin chain is a type of conveying with a longer pitch (distance between pins)than standard of roller chain, and it features hollow pin that allow forthe attachment of various components or fixture. These chains are used in material handling and conveying.See More
OCM TR (Top of Roller Chains) ระบบ ANSI/Single Pitch/AttachmentsTR (Top of Roller Chains) type roller chains are based on OCM standard roller chains with extra mounted on top of the chainsTop rollers are installed on the pins that connect SK-1 extendedattachments plates.
OCM "DC" type and "TC" type Roller Chainsระบบ BS/Single Pitch/Heavy Duty"DC" type roller chain consists of twice the number of side platesas the single strand chain as the working load is close to thestandard double strand chains. .
OCM H (Heavy Roller Chains)"H" type roller chains have increase link plate thickness to providegreater capacity without fatigue failure. The link thickness is thatof the next larger size chains. Single strand roller chains of "H"type run on standard roller chain sprockets OCM Chain No..50-1H,
1) OCM Stainless Roller Chain SUS Series This chain is made of 304 (austenitic) stainless steel. This chain has excellent corrosive resistance and non-magnetic. This chain is good for acid, alkali, water, etc. Heat resistance2) OCM Stainless Roller Chain SAC Series This chain is made of 316 (austenitic) stainless steel. This chain is better corrosive resistance than SUS Series. Spring clips and cotter used are made of 304 stainless steel. Heat resistance.3) OCM Stainless Roller Chain SPH Series The pin, bush and roller of these chains are made of 600 Series precipitation hardened stainless with link plate of 304 stainless steels. Spring clips and cotter used are made of 304 stainless steels. Magnetic, Better wear-resistance. The working load of this chain is 1.5 times SUS Series.
Construction of OCM Roller ChainsRoller chain is made of roller link and pin linkRoller link consists of two bushings press-fitted into roller link platewith two free rotating rollers over the bushings. Pin links consistsof two pin links plates into which two pins are press-fitted.
There are two types of pins: Rivet (Spring Clips) and Cotter types1) Rivet (Spring Clips) This is standard for all single and multiple strand ANSI standard chain 80 and below and British standard chain 16B and below2) Cotter Type This is standard for all single and multiple strand ANSI standard chain 100 and above and British standard chain 20B and above3) Offset Link. Offset Link is a combination of roller link and pin link. This link is used when the chain length is odd number of pitch. It is recommended not to be used one offset link whenever possible.4) Two Pitches Offset Link The unit consists of one offset link and one roller link. Pins are press-fitted into the link plates and the unit is more suitable for heavy impact load, high-speed driving than one pitch offset link.
Construction of OCM Conveyors ChainsThere are many types of chains for conveyors application but steelconveyors chains are popular and widely used. OCM FM and FEtypes of conveyors chains are superior to other type in strengthwear-resistance and the characteristic that changes materialand attachments are readily made according to an application.Conveyor Type by Roller1) R Roller. The outside of diameter of roller is larger than the height of link plate This type of conveyor is used mainly for slat, pallet, tight conveyors.2) F Roller. Flanged roller. This type is widely used on slat, pallet, pan conveyor.3) S Roller The outside of diameter of roller is smaller than the height of link plate. This is used for bucket elevator, flow conveyors.Standard Attachments:Attachments are attached according to requirementsThere are three basic types are standard1) Type A, A-1 indicates one hole, A-2 indicates two holes2) Type K, K-1 indicates one hole, K-2 indicates two holes3) Type G, G-2 indicates two hole, G-4 indicates four holes
OCM 06B-3 Roller Chains ระบบ ANSI, Single Pitch/ANSI/DINSteel Roller Chain No. 06B-3 10ft/box ในกล่องบรรจุโซ่ จำนวน 1 เส้นความยาว 3เมตร = 10 ฟุต แถมฟรีข้อต่อโซ่เต็มข้อ C/L จำนวน 1 ตัว
OCM TR (Top of Roller Chains) ระบบ ANSI/Single Pitch/AttachmentsTR (Top of Roller Chains) type roller chains are based OCM standard roller chains with extra roller mounted on top of the
OCM ND SELUBE CHAINS subject to special treatment has been improved its wear resistance more than 4 times compared withOCM SELUBE CHAIN. In the ordinary temperature range.It is suitable to extend the time for replacements of SELUBE chains,
OCM Self-Lube Roller Chains ระบบ ANSI/Double Pitch/Lube Free/SLRSLR type roller chains carry its own high-quality lubrication inimpregnated bushings. The sinter bushing keeps lubricationin the critical bearings areas of the pin and bushing where it is
OCM Corrosion Heat Resistance Chain (โซ่ที่ทนต่อการกัดกร่อน)โซ่ที่ทนต่อการกัดกร่อน ใช้กรรมวิธีพิเศษในการบำบัดพื้นผิวสำหรับชิ้นส่วนหรือใช้ชิ้นส่วนที่ทำจากพลาสติควิศวกรรม สแตนเลส เพื่อให้ได้ทนทานต่อการกัดกร่อน โดยดีเยี่ยมเป็นไปตามมาตรฐาน
OCM Hollow Pin Conveyors Chains ระบบ ISO (Institute StandardOrganization) โซ่ที่มีหมุดแบบกลวงมีโครงสร้างคล้ายลูกกับโซ่ลูกกลิ้งมาตรฐาน ISO ประกอบด้วยหมุดกลวงพุ่มและแผ่น เส้นผ่าศูนย์กลางของหมุด
OCM โซ่เหล็กสั่งทำแบบ Specialty (โซ่สั่งทำพิเศษ)OCM Products have three different types of 81X chains:"81X", "81XH" and "81XH-S". Each type is designed with differenttype link plate thickness and height to strength
OCM Double Pitch Hollow Pin Chains, A double pitch hollow pin chain is a type of conveying with a longer pitch (distance between pins)than standard of roller chain, and it features hollow pin that allow forthe attachment of various components or fixture. These chains are used in material handling and conveying.See More
- Product conditionมือหนึ่ง
- Post date28 มี.ค. 2569 12:37 น.
- Listing positionวังทองหลาง กรุงเทพมหานคร
- Listing ID371298887
