Product description

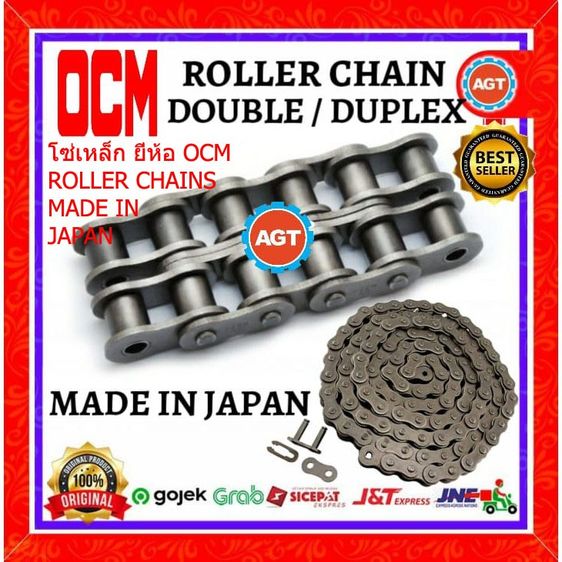

Construction of OCM Roller ChainsRoller chain is made of roller link and pin linkRoller link consists of two bushings press-fitted into roller link platewith two free rotating rollers over the bushings. Pin link consists oftwo pin link plates which two pins are press-fitted.
There are two types of pins: Rivet (Spring Clip) and Cotters.
1) Rivet (Spring Clips) This is standard for all single and multiple strand ANSI standard chain 80 and below and British standard chain 16B and below

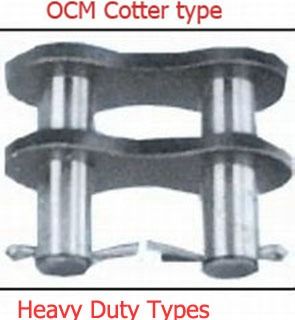

2) Cotter Types This is standard for all single and multiple strand ANSI standard chain 100 and above and British standard chain 20B and above
3) Offset Link Offset link is a combination of roller link and pin link This link is used when the chain length is odd number of pitches It is recommended not to be used one offset link whenever possible.
4) Two Pitches Offset Link. The unit consists one of offset link and one roller link. Pins are press-fitted into the link plate and the unit is more suitable for heavy impact load and high-speed driving than one pitch offset link.

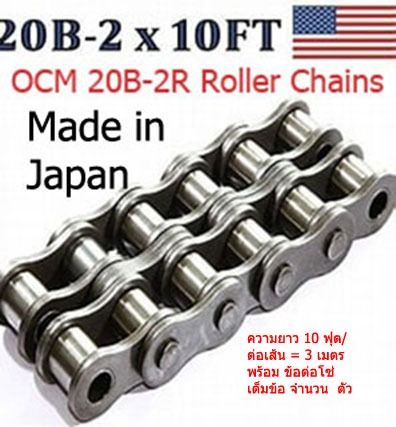

OCM 20B-2R Roller Chains (โซ่เหล็กอถวคู่) Material S451) Steel Roller Chain ความยาวโซ่ 10 ฟุต เท่ากับ 3 เมตร2) แถมฟรีข้อต่อโซ่เต็มข้อ C/L จำนวน 1 ตัว3) ระบบ ANSI/DIN/ISO standard4) โซ่ส่งกำลังรุ่นงานหนักมาตรฐาน ANSI
1) OCM Stainless Roller Chain SUS Series This chain is made of 304 stainless steels. This chain has excellent corrosive resistance and very low magnetic. This chain is good for acid, alkali, water, etc. Heat resistance

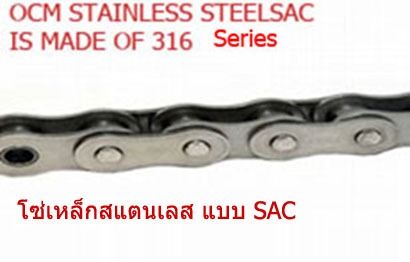

2) OCM Stainless Roller Chain SAC Series This chain is made of 316 stainless steels. This chain is better in corrosive resistance than SUS Series and non-magnetic. Spring clips and cotters used are made of 304 stainless steels. Heat resistance.
3) OCM Stainless Roller Chain SPH Series The pins, bushings and roller of this chain are made of 600 Series precipitation hardened stainless steel with link plate of 304 stainless steels. Spring clips and cotters used are made of 304 stainless steels. Magnetic, Better wear-resistance The working load of this chain is 1.5 times SUS Series

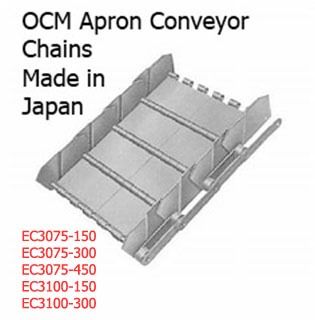

OCM Apron Conveyors เป็นสายพานลำเลียงที่มีลักษณะ เป็นโซ่ที่มีใบเหล็กรองรับเศษโลหะ หรือ ชิ้นงาน แข็งแรง ทนต่อแรงกระแทก เหมาะสำหรับงานหนัก

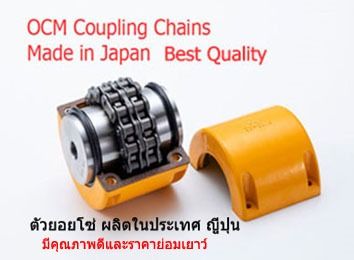

OCM Coupling Chain (ยอยโซ่) ประกอบด้วย ตัวยอย จำนวน 1 ชุดและ ยอยโซ่ จำนวน 2 เส้น
Construction of OCM Conveyors ChainThere are many types of chains for conveyors applications but steelchains for conveyors are popular and widely used. OCM FM and FEtypes are superior to other types in strength wear-resistance and the characteristic that changes in material and attachmentsare readily made according to an application
Conveyor By Roller Chains1) R Roller The outside of diameter of roller is larger than the height of link plate. This type of conveyor is used mainly for slat, pallet, tight conveyors.
2) F Roller Flanged Roller This type of conveyor is used mainly for inclined bucket, pan conveyors
3) S Roller The outside of diameter of roller is smaller than the height of link plate. This type of conveyor is used mainly for bucket elevator, flow conveyors.
Standard Attachments:Attachments are attached according to requirementsThere are three basic types are standard
1) Type A, A-1 indicates one hole, A-2 indicates two holes2) Type K, K-1 indicates one hole, K-2 indicates two holes3) Type G, G-2 indicates two holes, G-2 indicates four holes

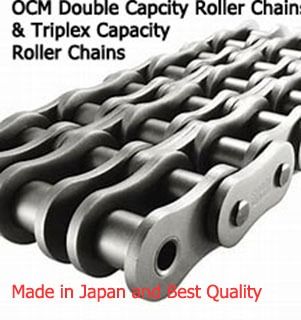

OCM "DC" type and "TC" type Roller Chains(Double Roller Chains & Triple Roller Chains)"DC" type roller chain consists of twice number of side plate as the single strand chains and its working load is close to thestandard double strand chains. "DC" and "TC" type roller chainsrun on standard roller chains sprockets and its ideal chain speedless than 50 m/min.
OCM "H" (Heavy Duty) Roller Chains "H" type roller chains haveincrease link plate thickness to provide greater capacity without fatigue failure. The link plate thickness is that of next larger sizechains. Single strand roller chains of H type roller chains run on standard roller chains sprockets OCM 50-1H, 0CM 50-2H
OCM Power Transmission คือ ระบบป้องกันด้วยขิ้นส่วนต่างๆ ทำหน้าที่รับพลังงานที่เกิดจากเครื่องยนต์ หรือ การทำงานของมอเตอร์ไฟฟ้าส่งกำลังแรงบิด
OCM Large-Size Conveyors โซ่สายพานลำเลียงขนาดใหญ่ สามารถใช้ได้ตามความเหมาะสมของการใช้งานในขนาดเชน Pitch,Roller, วัสด,การชุบแข็ง ภายในปีกของโซ่ลูกค้าใช้กับโซ่กับงานแต่ละรูปแบบได้
OCM TR (Top Roller Chain) type roller chains are based on OCMstandard roller chains with extra rollers mounted on the top ofthe chain. Top rollers mounted on the pin that connect SK-1 extendedattachment plate. The roller chains are available OCM 40-1TR
OCM โซ่ใบไม้ (OCM Leaf Chains) โซ่ใบไม้ที่มีความแข็งแรงสูงสำหรับการใช้งานยกของ เช่น รถยกและอุปกรณ์การจัดการวัสดุ ผลิตตามมาตรฐานความปลอดภัยสูงสุด

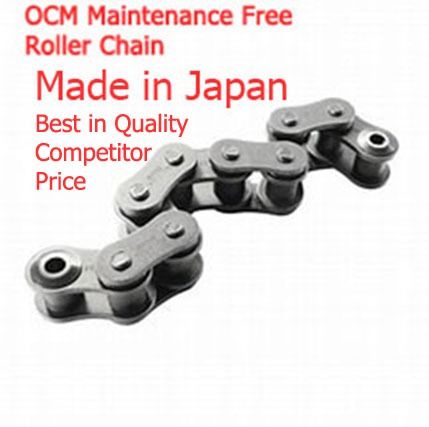

OCM MF (Maintenance Free Roller Chains) MF type roller chain isdesigned to hold high-quality bearings' lubrication between thepins and bushings with seals.

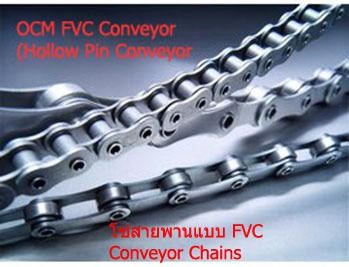

OCM FVC Double Pitch Hollow Pin is a type of conveyor chainwith longer pitch (distance between pins) than standard roller chainsand it features hollow pin that allows for the attachments of variouscomponents or fixtures. These chains are commonly used in material handling conveying.
OCM "H" (Heavy Duty) Roller Chains have increased link platethickness to provide greater capacity without fatigue failure.The link plate thickness is that of next larger size chains.Single strand roller chains of H type roller chains run on standardroller chain sprockets. OCM 50-1 H, OCM 50-2 H, OCM 50-3 HSee More
