รายละเอียดสินค้า
จำหน่าย OCM Overhead Chainsโซ่ลำเลียงรางแนวแขวนชนิดใช้รางรูปตัวซี (C) คว่ำ ตัวโซ่มีโครงสร้างเป็นเหล็กฟอร์จี้ง ล้อจะสลับกันเป็นล้อคว่ำวางตัวในแนวนอนและแนวดึงสลับกันไประยะ Pitch = 150 mm.

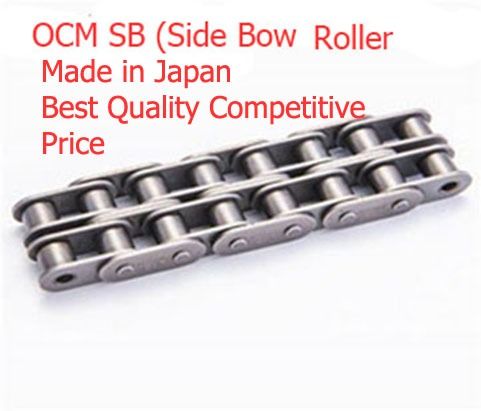

OCM SB (Side Bow Roller Chains)ระบบ ANSI/Single Pitch/MiscellaneousSB type roller chains provide extra clearance between pins, bushings,and link plates and give the chain freedom to slightly twist orcurve on a horizontal plate.

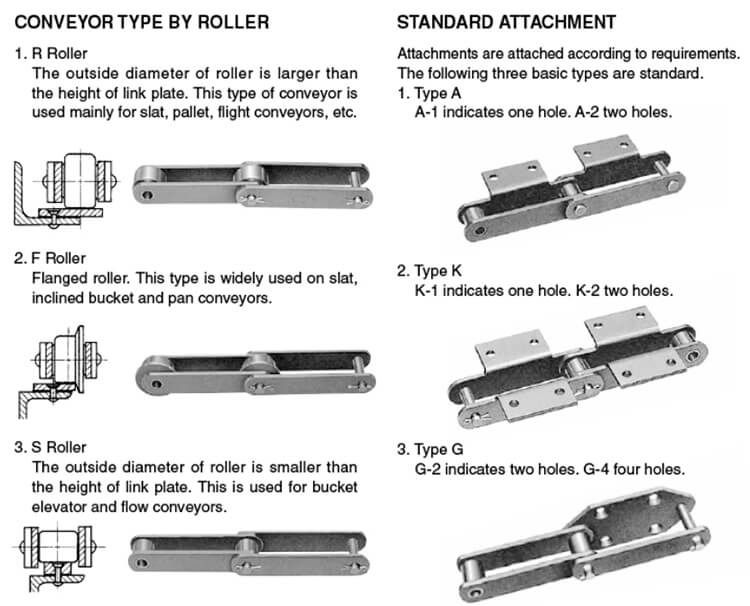

OCM Conveyor ChainsThere are many types of chain for conveyors applications but steelchain conveyors are popular and widely used. OCM FM and FEtypes conveyors chains are superior to other type in strength wear-resistance and the characteristic that changes in materialand attachments are readily made according to applications. Conveyor Type By Rollers
1) R Roller The outside of diameter of roller is larger than the height of link plate. This is used for slat, pallet, tight conveyors.
2) F Roller Flange roller. This is widely used on slat, inclined bucket and pan conveyors 3) S Roller The outside of diameter of roller is smaller than the height of link plate. This is used for bucket elevator and flow conveyors. Standard Attachments:Attachments are attached according to requirement
There are three basic types are standard.

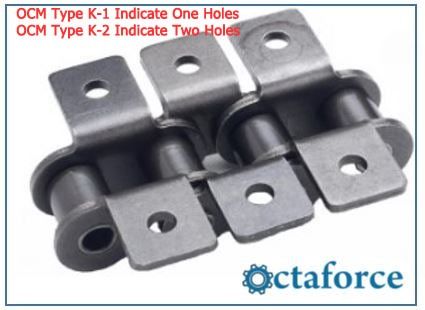

1) Type A, A-1 indicates one hole, A-2 indicates two holes2) Type K, K-1 indicates one hole, K-2 indicates two holes3) Type G G-2 indicates two holes, G-4 indicates four holes

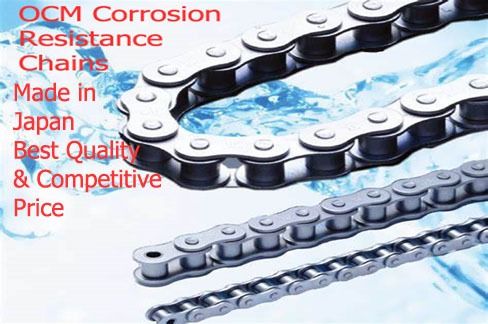

OCM Corrosion Resistance Chains (โซ่ทนต่อการกัดกร่อน)ระบบ ISO/ASME/ANSI/DIN Standardโซ่ที่ทนต่อการกัดกร่อนใช้กรรมวิธีพิเศษในการบำบัดพื้นผิวสำหรับชิ้นส่วนหรือใช้ชิ้นส่วนที่ทำจากพลาสติควิศวกรรม ฯลฯ เพื่อให้โซ่ที่มีความทนทานต่อการกัดกร่อน ได้ดีเยื่ยมเป็นไปตามมาตรฐาน ISO, ASME, ANSI, DIN และมาตรฐานอื่นๆ
OCM Self-Lube Roller Chainsระบบ ANSI/Single Pitch/Lube Free SLRSLR type roller chain carriers its own high-quality lubrication inimpregnate bushings. The sintered bushing keeps lubricationin the critical bearings areas of the pin and bushing where it isneed most. The plates are black oxide "Coat for extra Protection"SLR type roller chain is lubricated prior to delivery. OCM TR (Top Roller Chains)ระบบ ANSI/Single Pitch/AttachmentsTR (Top Roller Chains) type roller chains are based on OCM standardroller chains with extra rollers mounted on top of the chain.Top rollers are installed on the pin that connect SK-1 extended attachment plates. The rollers are available in OCM No.40-1R, OCM No. 50-1R, OCM 60-1R

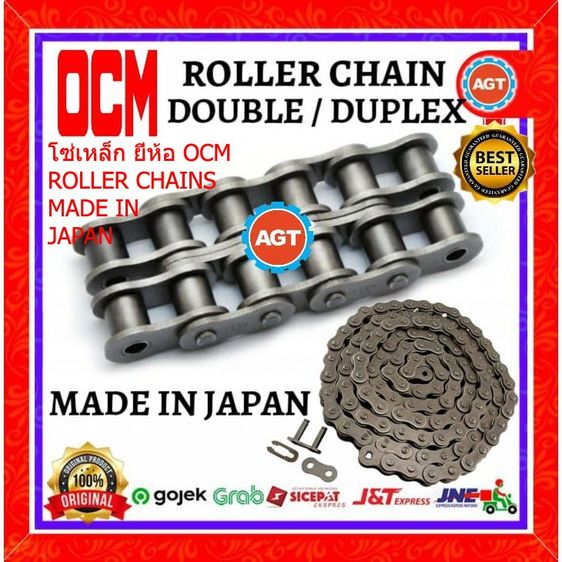

Construction of OCM Roller ChainsRoller chain is made of roller links and pin linksRoller link consists of two bushing press-fitted into roller link platewith two free rotating over the bushings. Pin links consists of two pinlinks plates into which two pins are press-fitted.
There are two types of pins: Rivet (Spring Clips) and Cotter types 1) Rivet (Spring Clips) type This is standard for single and multiple strand ANSI standard chain 80 and below and British standard chain 16B and below
2) Cotter Type This is standard for single and multiple strand ANSI standard chain 100 and above and British standard chain 20B and above
3) Offset Link The unit is combination of roller link and pin link. This link is used when the chain length is odd number of pitches It is recommended not to be used offset links whenever possible.

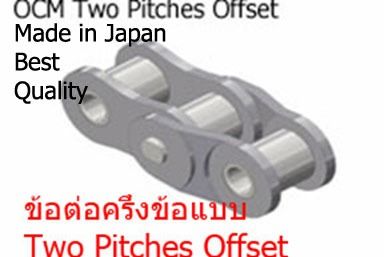

4) Two Pitches Offset Links The unit consists of one offset link and roller link. Pin are press- fitted into the link plate and the unit is more suitable for heavy impact load and high-speed driving than one pitch offset links
OCM OSB Series Roller ChainsOCM introduces OSB Series, oil port oriented solid bush roller chainwith solid roller. Over 30 years' experience of manufacturing oil portroller chain made this possible. It corporates the advantage of solidbush, cylindrical roundness making a large bearings area and oil port as oil reservoir. The larger bearings area and oil port, actingas an oil reservoir improve the wear resistance and prolong the chain life by 30% as compared with solid bush chain withoutoil port under no lubricating conditions. 1) OCM Stainless Roller Chain SUS Series This chain is made of 304 (austenitic) stainless steel. This chain has excellent corrosive resistance very low magnetic This chain is good for acid, alkali, water, etc. Heat resistance.
2) OCM Stainless Roller Chain SAC Series This chain is made of 316 (austenitic) stainless steel. This chain is better in corrosive resistance than SUS Series and non-magnetic. Spring clips and cotters used are made of 304 stainless steels. Heat resistance.

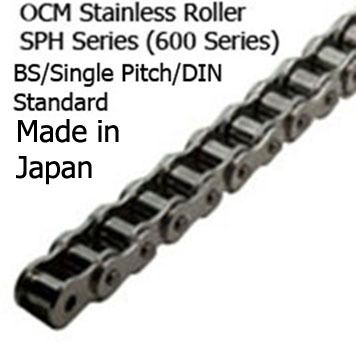

3) OCM Stainless Roller Chain SPH Series The pin, bush and roller of this chain are made of 600 Series precipitation hardened stainless with link plate of 304 stainless steel. Spring clips and cotter used are made of 304 stainless steel. Magnetic, Better wear-resistance The working load of this chain 1.5 times SUS Series
อ่านเพิ่มเติม
OCM SB (Side Bow Roller Chains)ระบบ ANSI/Single Pitch/MiscellaneousSB type roller chains provide extra clearance between pins, bushings,and link plates and give the chain freedom to slightly twist orcurve on a horizontal plate.
OCM Conveyor ChainsThere are many types of chain for conveyors applications but steelchain conveyors are popular and widely used. OCM FM and FEtypes conveyors chains are superior to other type in strength wear-resistance and the characteristic that changes in materialand attachments are readily made according to applications. Conveyor Type By Rollers
1) R Roller The outside of diameter of roller is larger than the height of link plate. This is used for slat, pallet, tight conveyors.
2) F Roller Flange roller. This is widely used on slat, inclined bucket and pan conveyors 3) S Roller The outside of diameter of roller is smaller than the height of link plate. This is used for bucket elevator and flow conveyors. Standard Attachments:Attachments are attached according to requirement
There are three basic types are standard.
1) Type A, A-1 indicates one hole, A-2 indicates two holes2) Type K, K-1 indicates one hole, K-2 indicates two holes3) Type G G-2 indicates two holes, G-4 indicates four holes
OCM Corrosion Resistance Chains (โซ่ทนต่อการกัดกร่อน)ระบบ ISO/ASME/ANSI/DIN Standardโซ่ที่ทนต่อการกัดกร่อนใช้กรรมวิธีพิเศษในการบำบัดพื้นผิวสำหรับชิ้นส่วนหรือใช้ชิ้นส่วนที่ทำจากพลาสติควิศวกรรม ฯลฯ เพื่อให้โซ่ที่มีความทนทานต่อการกัดกร่อน ได้ดีเยื่ยมเป็นไปตามมาตรฐาน ISO, ASME, ANSI, DIN และมาตรฐานอื่นๆ
OCM Self-Lube Roller Chainsระบบ ANSI/Single Pitch/Lube Free SLRSLR type roller chain carriers its own high-quality lubrication inimpregnate bushings. The sintered bushing keeps lubricationin the critical bearings areas of the pin and bushing where it isneed most. The plates are black oxide "Coat for extra Protection"SLR type roller chain is lubricated prior to delivery. OCM TR (Top Roller Chains)ระบบ ANSI/Single Pitch/AttachmentsTR (Top Roller Chains) type roller chains are based on OCM standardroller chains with extra rollers mounted on top of the chain.Top rollers are installed on the pin that connect SK-1 extended attachment plates. The rollers are available in OCM No.40-1R, OCM No. 50-1R, OCM 60-1R
Construction of OCM Roller ChainsRoller chain is made of roller links and pin linksRoller link consists of two bushing press-fitted into roller link platewith two free rotating over the bushings. Pin links consists of two pinlinks plates into which two pins are press-fitted.
There are two types of pins: Rivet (Spring Clips) and Cotter types 1) Rivet (Spring Clips) type This is standard for single and multiple strand ANSI standard chain 80 and below and British standard chain 16B and below
2) Cotter Type This is standard for single and multiple strand ANSI standard chain 100 and above and British standard chain 20B and above
3) Offset Link The unit is combination of roller link and pin link. This link is used when the chain length is odd number of pitches It is recommended not to be used offset links whenever possible.
4) Two Pitches Offset Links The unit consists of one offset link and roller link. Pin are press- fitted into the link plate and the unit is more suitable for heavy impact load and high-speed driving than one pitch offset links
OCM OSB Series Roller ChainsOCM introduces OSB Series, oil port oriented solid bush roller chainwith solid roller. Over 30 years' experience of manufacturing oil portroller chain made this possible. It corporates the advantage of solidbush, cylindrical roundness making a large bearings area and oil port as oil reservoir. The larger bearings area and oil port, actingas an oil reservoir improve the wear resistance and prolong the chain life by 30% as compared with solid bush chain withoutoil port under no lubricating conditions. 1) OCM Stainless Roller Chain SUS Series This chain is made of 304 (austenitic) stainless steel. This chain has excellent corrosive resistance very low magnetic This chain is good for acid, alkali, water, etc. Heat resistance.
2) OCM Stainless Roller Chain SAC Series This chain is made of 316 (austenitic) stainless steel. This chain is better in corrosive resistance than SUS Series and non-magnetic. Spring clips and cotters used are made of 304 stainless steels. Heat resistance.
3) OCM Stainless Roller Chain SPH Series The pin, bush and roller of this chain are made of 600 Series precipitation hardened stainless with link plate of 304 stainless steel. Spring clips and cotter used are made of 304 stainless steel. Magnetic, Better wear-resistance The working load of this chain 1.5 times SUS Series
อ่านเพิ่มเติม
