รายละเอียดสินค้า
OCM F (Flat Sidebar Roller Chains) ระบบ BS/Single Pitch/MiscellaneousF type roller chains high fatigue resistance and are suited for conveyorbased products and/or sliding on a surface chain No. 0CM 08B-1F
Construction of OCM Roller ChainsRoller chain is made of roller links and pin linksRoller links consists of two bushing press-fitted into roller link platewith two free rotating roller over bushings. Pin links consists oftwo pin links are press-fitted.
There are two types of pins: Rivet (Spring Clips) and Cotter Types

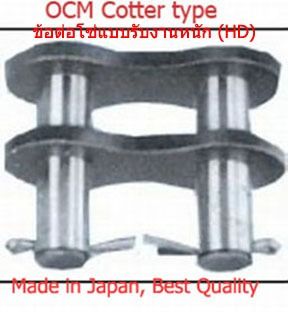

1) Rivet (Spring Clips) This is standard for all single and multiple strand ANSI standard chain 80 and below and British standard chain 16B and below2) Cotter Type This is standard for all single and multiple strand strand ANSI standard chain 100 and above and British standard chain 20B and above3) Offset Links This is a combination of offset links. This link is used when the chain length is odd number of pitch. It is recommended not to be used one offset links whenever possible 4) Two Pitches Offset Link The unit consists of one offset link and one roller links. Pin links are press-fitted into the link plate and the unit is more suitable for heavy impact load, high-speed driving than one pitch offset link.
1) OCM Stainless Roller Chain SUS Series This chain is made of 304 (austenitic) stainless steel. This chain has excellent corrosive resistance and very low magnetic. This chain is good for acid, alkali, water, etc. Heat resistance

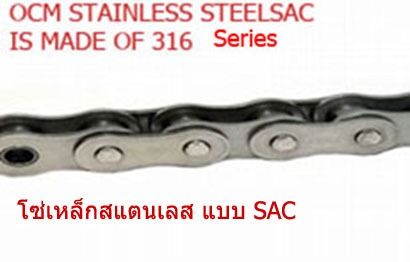

2) OCM Stainless Roller Chain SAC Series This chain is made of 316 (austenitic) stainless steel. This is better in corrosive resistance than SUS Series and non-magnetic Spring clips and cotters used are made of 304 stainless steels. Heat resistance.
3) OCM Stainless Roller Chain SPH Series The pin, bushings and roller of these chains are made of 600 Serie precipitation hardened stainless steels with link plate of 304 stainless steels.Magnetic Better wear-resistance. The working load of this chain is 1.5 times SUS Series.
Construction of OCM Conveyor ChainsThere are many types of chains for conveyors applications but steelchain for conveyors are popular and widely used. OCM FM and FEtype conveyors are superior to other types in strength wear-resistanceand the characteristic changes material and attachments are readilymade in according to an application.

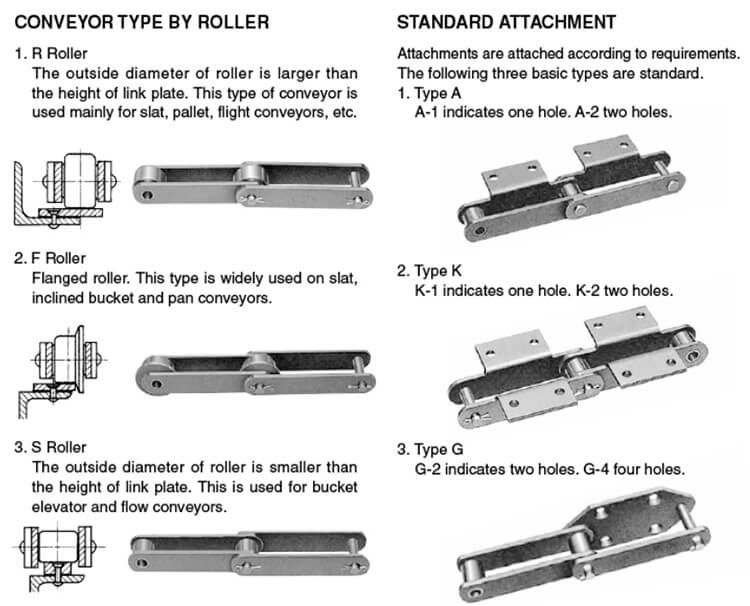

Conveyor Type By Roller1) R Roller The outside of diameter of roller is larger than the height of link plate. This type of conveyor is used for slat, pallet, tight conveyors2) F Roller Flanged roller. This type is widely used on slat, pallet, pan conveyors3) S Roller The outside of diameter of roller is smaller than the height of link plate. This is used for bucket elevator and flow conveyorsStandard Attachments:Attachments are attached according to requirementsThere are three basic types are standard.

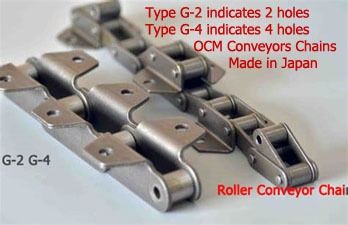

1) Type A, A-1 indicates one hole, A-2 indicates two holes2) Type K, K-1 indicates one hole, K-2 indicates two holes3) Type G, G-2 indicates two holes, G-4 indicates four holes
OCM "H" (Heavy Duty) Roller Chains ระบบ ANSI/Single Pitch/Heavy Duty "H" type roller chains have increase link plate thicknessto provide greater capacity without fatigue failure. The link platethickness is that of the next larger size chains. Single strand rollerchain of "H" type run on standard roller sprockets.

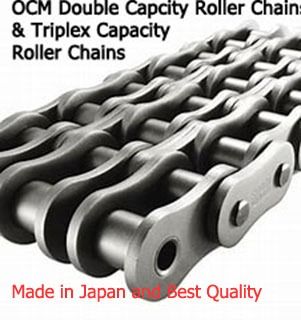

OCM "DC" type and "TC" type Roller Chains(Double Roller Chains and Triple Roller Chains)ระบบ BS/Single Pitch/Heavy Duty"DC" type roller chain consists of twice the number of side plate as single strand chains and its working load is close to the standard double strand chain. "DC" type and "TC" type roller chainsrun on standard roller chains sprockets and the ideal chain speedless than 50 m/min.
OCM ND SELUBE CHAINS subject to special treatment has beenimproved its wear resistance more than 4 times compared toOCM SELUBE CHAIN in the ordinary temperatures range. It is suitableto extend the time for replacement of SELUBE chains, it is possibleto replace without facilities or equipment change.

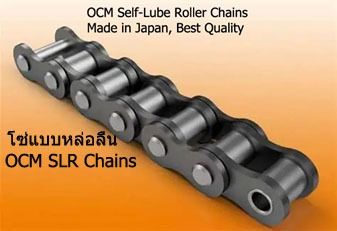

OCM SELUBE ROLLER CHAINS ระบบ ANSI/Double Pitch/Lube Free/SLR SLR type roller chains its own high-quality lubricationsin impregnated bushing. The sinter bushing keeps lubricationsin the critical bearings areas of the pins and bushings where it is need

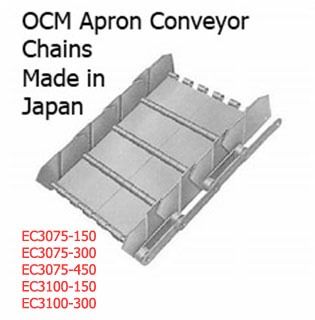

OCM Apron Conveyors เป็นสายพานลำเลียงที่มีลักษณะ เป็นโซ่ที่มีใบเหล็กรองรับเศษโลหะ หรือชิ้นงานแข็งแรง ทนต่อแรงกระแทกเหมาะสำหรับงานหนัก

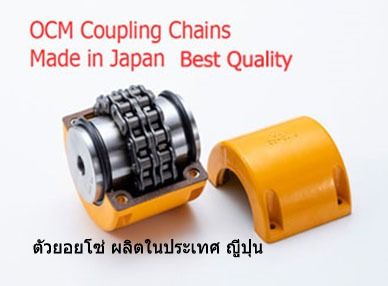

OCM Coupling Chain (ยอยโซ่) ประกอบด้วย ยอยโซ่ จำนวน 2 เส้นและตัวยอย จำนวน 1 ชุด
OCM Power Transmission (ระบบส่งกำลัง) คือระบบที่ป้องกันด้วยชิ้นส่วนต่างๆ ทำหน้าที่รับพลังงานที่เกิดจากเครื่องยนต์ หรือการทำงานของมอเตอร์ไฟฟ้าส่งแรงบิด
OCM TR (Top of Roller Chains) type roller chains are based on theOCM standard roller chains with extra roller mounted on the topof the chains. Top rollers are installed on the pin that connect SK-1extended attachments plates. The rollers are available in carbonsteel, stainless steel, low frictions plastic.
อ่านเพิ่มเติม
Construction of OCM Roller ChainsRoller chain is made of roller links and pin linksRoller links consists of two bushing press-fitted into roller link platewith two free rotating roller over bushings. Pin links consists oftwo pin links are press-fitted.
There are two types of pins: Rivet (Spring Clips) and Cotter Types
1) Rivet (Spring Clips) This is standard for all single and multiple strand ANSI standard chain 80 and below and British standard chain 16B and below2) Cotter Type This is standard for all single and multiple strand strand ANSI standard chain 100 and above and British standard chain 20B and above3) Offset Links This is a combination of offset links. This link is used when the chain length is odd number of pitch. It is recommended not to be used one offset links whenever possible 4) Two Pitches Offset Link The unit consists of one offset link and one roller links. Pin links are press-fitted into the link plate and the unit is more suitable for heavy impact load, high-speed driving than one pitch offset link.
1) OCM Stainless Roller Chain SUS Series This chain is made of 304 (austenitic) stainless steel. This chain has excellent corrosive resistance and very low magnetic. This chain is good for acid, alkali, water, etc. Heat resistance
2) OCM Stainless Roller Chain SAC Series This chain is made of 316 (austenitic) stainless steel. This is better in corrosive resistance than SUS Series and non-magnetic Spring clips and cotters used are made of 304 stainless steels. Heat resistance.
3) OCM Stainless Roller Chain SPH Series The pin, bushings and roller of these chains are made of 600 Serie precipitation hardened stainless steels with link plate of 304 stainless steels.Magnetic Better wear-resistance. The working load of this chain is 1.5 times SUS Series.
Construction of OCM Conveyor ChainsThere are many types of chains for conveyors applications but steelchain for conveyors are popular and widely used. OCM FM and FEtype conveyors are superior to other types in strength wear-resistanceand the characteristic changes material and attachments are readilymade in according to an application.
Conveyor Type By Roller1) R Roller The outside of diameter of roller is larger than the height of link plate. This type of conveyor is used for slat, pallet, tight conveyors2) F Roller Flanged roller. This type is widely used on slat, pallet, pan conveyors3) S Roller The outside of diameter of roller is smaller than the height of link plate. This is used for bucket elevator and flow conveyorsStandard Attachments:Attachments are attached according to requirementsThere are three basic types are standard.
1) Type A, A-1 indicates one hole, A-2 indicates two holes2) Type K, K-1 indicates one hole, K-2 indicates two holes3) Type G, G-2 indicates two holes, G-4 indicates four holes
OCM "H" (Heavy Duty) Roller Chains ระบบ ANSI/Single Pitch/Heavy Duty "H" type roller chains have increase link plate thicknessto provide greater capacity without fatigue failure. The link platethickness is that of the next larger size chains. Single strand rollerchain of "H" type run on standard roller sprockets.
OCM "DC" type and "TC" type Roller Chains(Double Roller Chains and Triple Roller Chains)ระบบ BS/Single Pitch/Heavy Duty"DC" type roller chain consists of twice the number of side plate as single strand chains and its working load is close to the standard double strand chain. "DC" type and "TC" type roller chainsrun on standard roller chains sprockets and the ideal chain speedless than 50 m/min.
OCM ND SELUBE CHAINS subject to special treatment has beenimproved its wear resistance more than 4 times compared toOCM SELUBE CHAIN in the ordinary temperatures range. It is suitableto extend the time for replacement of SELUBE chains, it is possibleto replace without facilities or equipment change.
OCM SELUBE ROLLER CHAINS ระบบ ANSI/Double Pitch/Lube Free/SLR SLR type roller chains its own high-quality lubricationsin impregnated bushing. The sinter bushing keeps lubricationsin the critical bearings areas of the pins and bushings where it is need
OCM Apron Conveyors เป็นสายพานลำเลียงที่มีลักษณะ เป็นโซ่ที่มีใบเหล็กรองรับเศษโลหะ หรือชิ้นงานแข็งแรง ทนต่อแรงกระแทกเหมาะสำหรับงานหนัก
OCM Coupling Chain (ยอยโซ่) ประกอบด้วย ยอยโซ่ จำนวน 2 เส้นและตัวยอย จำนวน 1 ชุด
OCM Power Transmission (ระบบส่งกำลัง) คือระบบที่ป้องกันด้วยชิ้นส่วนต่างๆ ทำหน้าที่รับพลังงานที่เกิดจากเครื่องยนต์ หรือการทำงานของมอเตอร์ไฟฟ้าส่งแรงบิด
OCM TR (Top of Roller Chains) type roller chains are based on theOCM standard roller chains with extra roller mounted on the topof the chains. Top rollers are installed on the pin that connect SK-1extended attachments plates. The rollers are available in carbonsteel, stainless steel, low frictions plastic.
อ่านเพิ่มเติม
