Product description
1) OCM Stainless Roller Chain SUS Series This chain is made of 304 (austenitic) stainless steel. This chain has excellent corrosive resistance and non-magnetic. This chain is good for acid, alkali, water, etc. Heat resistance
2) OCM Stainless Roller Chain SAC Series This chain is made of 316 (austenitic) stainless steel. This is better in corrosive resistance than SUS Series. Spring clips and cotters used are made of 304 stainless steels. Heat resistance
3) OCM Stainless Roller Chain SPH Series The pin, bush and roller of this chains are made of 600 Series precipitation hardened stainless steel with link plate of 314 stainless steels. Spring clips and cotter used are made of 314 stainless steels. Magnetic Better wear-resistance. The working load of this chain is 1.5 times SUS Series
Construction of OCM Roller ChainsRoller chain is made of roller links and pin linksRoller link consists of two bushings press-fitted into roller link platewith two free rotating rollers over the bushings. . Pin link consists of two pin links plate into which two pins are press-fitted.
There are two types of pins: Rivet (Spring Clips) and Cotter Types
1) Rivet (Spring Clips) This is standard for all single and multiple strand ANSI standard chain 80 and below and British standard chain 16B and below.
2) Cotter Type This is standard for all single and multiple strand ANSI standard chain 100 and above and British standard chain 20B and above.
3) Offset Link. Offset link is a combination of roller link and pin links this link is used when the chain length is odd number of pitch. It is recommended not to be used one offset link whenever possible.4) Two Pitch Offset Links The unit consists of one offset link and one roller link Pins are press-fitted into the link plates and the unit is more suitable for heavy impact load, high-speed driving one pitch offset link.
Construction of OCM ConveyorsThere are many types of chains for conveyors applications butsteel conveyors chains are widely used. OCM FM and FE typesconveyors chains are superior to other types in strength wear-resistance and the characteristic that changes in material andattachments are readily made according to an applications.
Conveyor Type By Roller1) R Roller The outside of diameter of roller is larger than the height of link plate. This type of conveyor is used mainly for slat, pallet, tight conveyors.2) F Roller. Flanged roller. This type is widely used on slat, inclined bucket and pan conveyors.3) S Roller The outside of diameter of roller is smaller than the height of link plate. This is used for bucket elevator flow conveyors.Standard Attachments:Attachments are attached according to requirementsThere are three basic types are standard1) Type A, A-1 indicates one hole, A-2 indicates two holes2) Type K, K-1 indicates one hole, K-2 indicates two holes3) Type G, G-2 indicates two holes, G-4 indicates four holes
OCM 20B-2R (โซ่เหล็กแถวคู่) Material S45C1) Steel Roller Chain No. 20B-2R, 10ft/box2) ในกล่องบรรจุ โซ่จำนวน 1 เส้น และแถมฟรีข้อต่อเต็มข้อ C/L 1 ตัว3) ระบบ ISO/ANSI/DIN standard.
OCM TR (Top of Roller Chains) ระบบ ANSI/Single Pitch/AttachmentTR (Top of Roller Chains) type roller chains are based on OCMstandard roller chains with extra roller mounted on top of thechains. Top rollers are installed on the pins that connected SK-1 extended attachment plates.
OCM Hollow Pin Double Chains (แบบลูกกลิ้งใหญ่)ความยาว 3 เมตร (จำนวน 1 เส้น) แถมฟรีข้อต่อโซ่เต็มข้อ C/L จำนวน 1 ตัว
OCM ND SELUBE Chains subject to special treatment has beenimproved its wear resistance more than 4 times, compare withOCM SELUBE CHAINS in the ordinary temperature ranges,it is suitable to extend the time for replacement of SELUBE chains,it is possible to replace without facilities or equipment change.
OCM Power Transmission (ระบบส่งกำลัง) คือระบบที่ป้องกันชิ้นส่วนต่างๆทำหน้าที่รับพลังงานที่เกิดจากเครื่องยนต์ หรือการทำงานของมอเตอร์ไฟฟ้าส่งแรงบิด

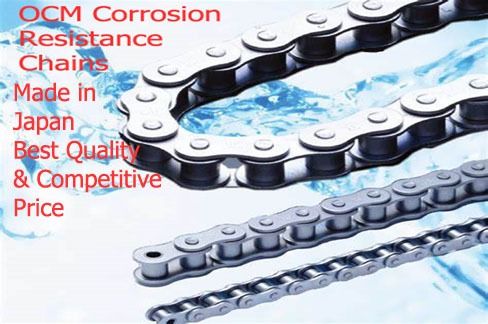

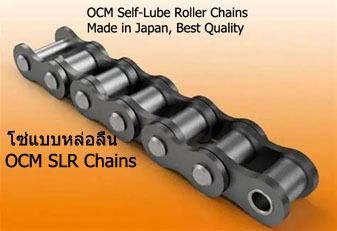

OCM Corrosion Heat Resistance Chains (โซที่ทนต่อการกัดกร่อน)โซ่ที่ทนต่อการกัดกร่อน ใช้กรรมวิธีพิเศษในการบำบัดพื้นผิวสำหรับชิ้นส่วนหรือใช้ชิ้นส่วนที่ทำจากพลาสติควิศวกรรม สแตนเลส เพื่อให้ได้ทนทานต่อการกัดกร่อน โดยดีเยี่ยมเป็นไปตามมาตรฐาน OCM Self-Lube Roller Chains ระบบ ANSI/Double Pitch/Lube/Free SLRSLR type roller chains carry its own high quality lubrication in impregnated bushings. The sintered bushing keeps lubricationin the critical bearings area of the pin and bushing where it isneeded most. The plates are black oxide "Coat for extra protection"SLR type roller chain is lubricated prior to delivery.

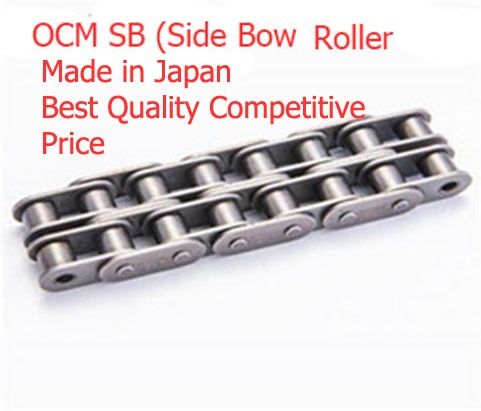

OCM SB (Side Bow Roller Chains) ระบบ ANSI/Single Pitch/Miscellaneous SB type roller chains provide extra clearancebetween pin, bushing and link plate.
OCM Double Pitch Hollow Pin Chains, A double pitch hollow pin chainis a type of conveyor chain with a longer pitch (distance betweenpins) than standard of roller chains, and it features hollow pin thatallow for the attachment of various components or fixture. These chains are commonly used in material handling and conveyings.See More
