รายละเอียดสินค้า
OCM Apron Conveyors Chainsเป็นสายพานลำเลียงที่มีลักษณะ เป็นโซ่ที่มีใบเหล็กรองรับเศษโลหะ หรือชิ้นงาน แข็งแรง ทนต่อแรงกระแทก เหมาะสำหรับงานหนัก

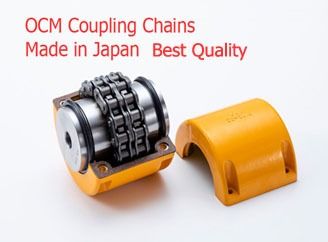

OCM Coupling Chains (ยอยโซ่) เป็นผลิตภัณฑ์จากประเทศ ญุ่ีปุ่นประกอบด้วย ยอยโซ่ จำนวน 2 เส้น และตัวยอย จำนวน 1 ตัว
OCM Super H Roller Chain is a high-strength heavy dutyroller chain from OCM Chain Co. Ltd., It features thickerlink plate than standard roller chains designed for applicationsrequiring higher tensile strength and shock absorption.

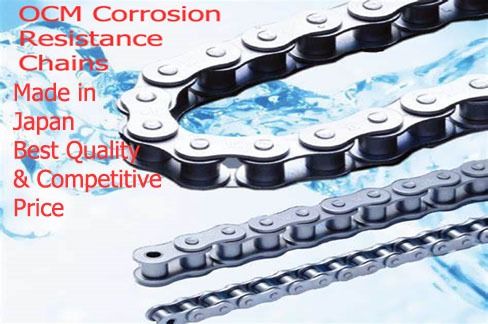

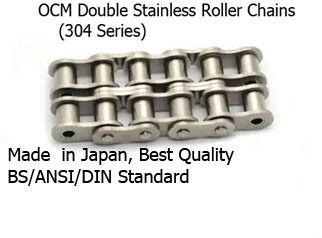

1) OCM Stainless Roller Chain SUS Series This chain is made of 304 (austenitic) stainless steel. This chain has excellent corrosive resistance non-magnetic. This chain is good for acid, alkali, water, etc. Heat resistance.

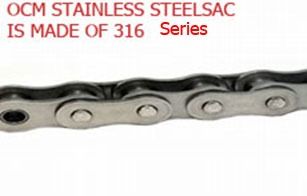

2) OCM Stainless Roller Chain SAC Series This chain is made of 316 (austenitic) stainless steel. This is better in corrosive resistance than SUS Series. Spring clips and cotters used are made of 304 stainless steel. Heat resistance.

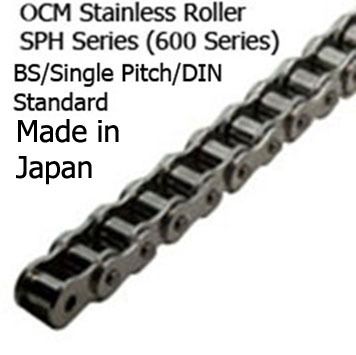

3) OCM Stainless Roller Chain SPH Series The pin, bush and roller of this chain are made of 600 Series precipitation hardened stainless with link plate of 304 stainless steel. Spring clips and cotters used are made of 304 stainless and cotters used are made of 304 stainless steels. Magnetic, Better wear-resistance. The working load of this chain is 1.5 times SUS Series.

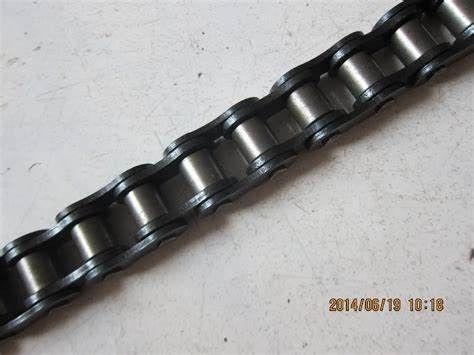

Construction of OCM Roller ChainsRoller chain is made of roller link and pin linksRoller link consists two bushing press-fitted into the roller link platewith two free rotating roller over the bushings. Pin links consisttwo pin links plates into which two pins are press-fitted.
There are two types of pins: Rivet (Spring Clips) and Cotter types
1) Rivet (Spring Clips) This is standard for all single and multiple strand ANSI standard chain 80 and below and British standard chain 16B and below.
2) Cotter Type This is standard for all single and multiple strand ANSI standard chain 100 and above and British standard chain 20B and above.
3) Offset Link An Offset link is a combination of roller link and pin This link is used when the chain length is odd number of pitches. It is recommended not to be use offset link whenever possible
4) Two Pitches Offset Link The unit consists of one offset link and one roller link. Pins are press-fitted into the link plates and the unit is more suitable for heavy impact load, high-speed driving than one pitch offset link.

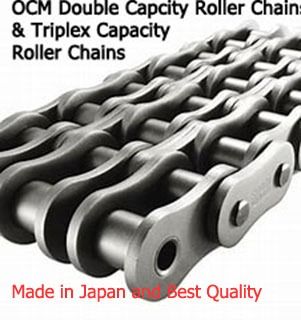

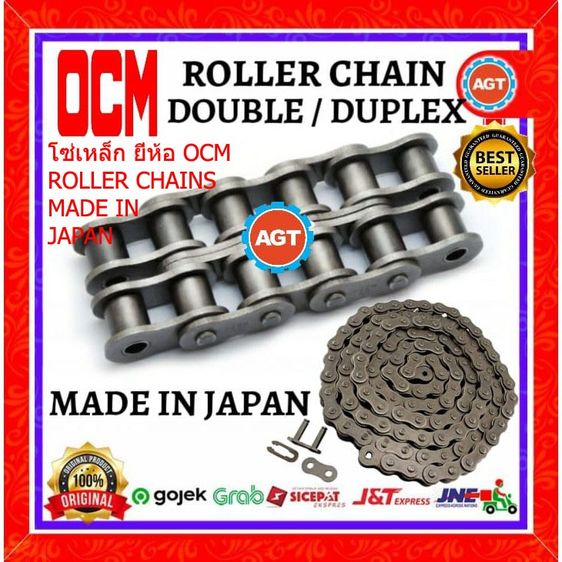

OCM "DC" type "TC" type Roller Chains(Double Roller Chains & Triple Roller Chains)ระบบ BS/Single Pitch/Heavy Duty"DC" type roller chains consist of twice the number of side platesas the single strand chain and its working load is close to thestandard double strand chains: "DC" type and "TC" type roller chainsrun on standard roller chain sprockets and the ideal chain speedis less than 50 m/min.
OCM H (Heavy Duty) Roller ChainsH roller chains have increase link plate with thickness to providegreater capacity without fatigue failure. The link plate thicknessis that of the next larger size chains. Single strand roller chainsof H type run on standard roller chain sprockets.
Construction OCM Conveyors ChainsThere are many types of chain for conveyors applications but steelconveyors chains are popular and widely used. OCM FM and FEtypes of conveyors chains are superior to other types in strengthwear-resistance and the characteristic that changes materialand attachments are readily made according to an application.
Conveyor Type By Roller
1) R Roller The outside of diameter of roller is larger than the height of link plate. This type of conveyor is used for slat, pallet, tight conveyors.2) F Roller. Flanged roller This is used for inclined bucket and pan conveyors.3) S Roller The outside of diameter of roller is smaller than the height of link plate. This is used for bucket elevator, pan conveyors.
Standard Attachments:Attachments are attached according to requirementsThere are three basic types are standard.

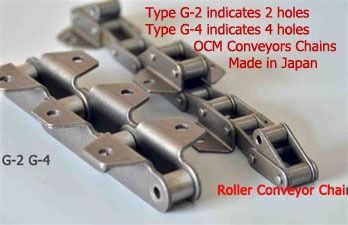

1) Type A, A-1 indicates one hole, A-2 indicates two holes2) Type K, K-1 indicates one hole, K-2 indicates two holes3) Type G, G-2 indicates two holes, G-4 indicates four holes:
OCM Roller Chains 083 Simplex Narrow Connecting LinkMade in Japan: Specifications1) 1/2" x 3/16" Simplex Roller Chains2) Standard 083 Chain Pitch 1/2" 12-70 mm.

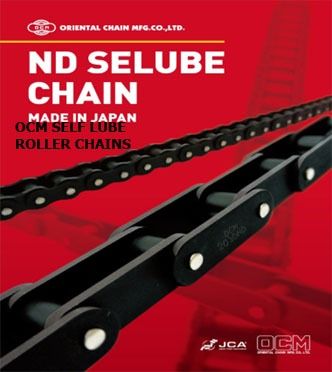

OCM SELUBE ROLLER CHAINS subject to special treatment has beenimproved its wear resistance more than 4 times, compare withOCM SELUBE CHAIN in the ordinary temperature range. It is suitableto extended the time for replacements of SELUBE chains, it is possibleto replace without facilities or equipment change.

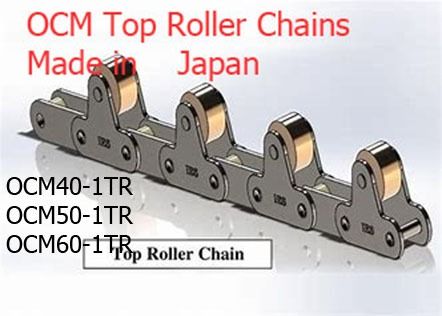

OCM TR (Top of Roller Chains) ระบบ ANSI/Single Pitch/AttachmentTR (Top of Roller Chains) type roller chains are based on OCM standard roller chains with extra roller mounted on top of thechains. Top rollers are installed on the pins that connect SK-1extended attachment plates.

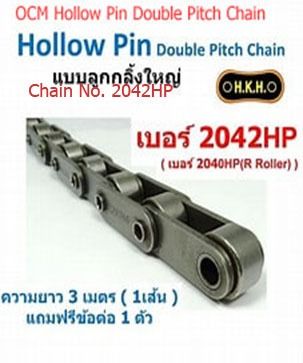

OCM Hollow Pin Double Pitch Chains (แบบลูกกลิ้งใหญ่)ความยาว 3 เมตร จำนวน 1 เส้น แถมฟรีข้อต่อโซ่เต็มข้อ C/L จำนวน 1ตัว

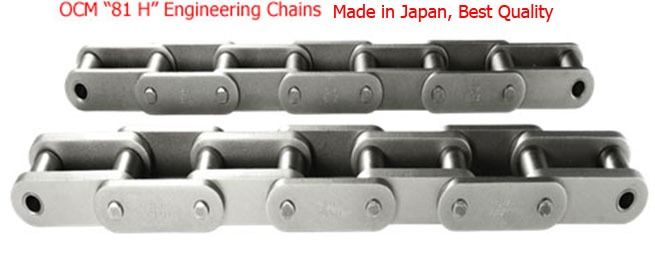

OCM โซ่เหล็ก Specialty (โซ่สั่งทำพิเศษ)OCM Products have three different type of 81X chains:1) "81X", 2) "81XH" 3) "81XH-S". Each type is designed for different link plate thickness and height to strength progressively higher load and durability.

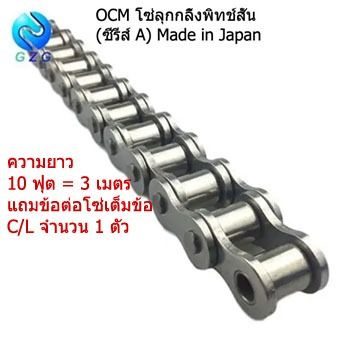

โซ่ลูกกลิ้งความแม่นยำระยะฟิทช์สั้น (ซีรีส์ A) โซ่ขับเคลื่อน - โซ่ลูกกลิ้งความแม่นยำ 1) มีขอบเขตการใช้งานที่หลากหลาย 2) การสะสมเทคโนโลยี่ที่อุดมสมบูรณ์ 3) ความแข็งแรง ความเมื่อยล้าสูง และอายุการใช้งานยาวนาน

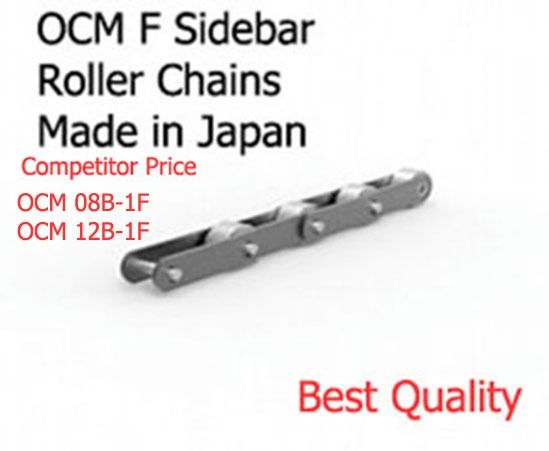

OCM F (Flat Sidebar Roller Chains) ระบบ BS/Single Pitch/Miscellaneous F type roller chain offers high fatigue resistanceand are suited for conveyor based products and/or sliding on a surface Chain No. 08B-1F, OCM 12B-1F
อ่านเพิ่มเติม
OCM Coupling Chains (ยอยโซ่) เป็นผลิตภัณฑ์จากประเทศ ญุ่ีปุ่นประกอบด้วย ยอยโซ่ จำนวน 2 เส้น และตัวยอย จำนวน 1 ตัว
OCM Super H Roller Chain is a high-strength heavy dutyroller chain from OCM Chain Co. Ltd., It features thickerlink plate than standard roller chains designed for applicationsrequiring higher tensile strength and shock absorption.
1) OCM Stainless Roller Chain SUS Series This chain is made of 304 (austenitic) stainless steel. This chain has excellent corrosive resistance non-magnetic. This chain is good for acid, alkali, water, etc. Heat resistance.
2) OCM Stainless Roller Chain SAC Series This chain is made of 316 (austenitic) stainless steel. This is better in corrosive resistance than SUS Series. Spring clips and cotters used are made of 304 stainless steel. Heat resistance.
3) OCM Stainless Roller Chain SPH Series The pin, bush and roller of this chain are made of 600 Series precipitation hardened stainless with link plate of 304 stainless steel. Spring clips and cotters used are made of 304 stainless and cotters used are made of 304 stainless steels. Magnetic, Better wear-resistance. The working load of this chain is 1.5 times SUS Series.
Construction of OCM Roller ChainsRoller chain is made of roller link and pin linksRoller link consists two bushing press-fitted into the roller link platewith two free rotating roller over the bushings. Pin links consisttwo pin links plates into which two pins are press-fitted.
There are two types of pins: Rivet (Spring Clips) and Cotter types
1) Rivet (Spring Clips) This is standard for all single and multiple strand ANSI standard chain 80 and below and British standard chain 16B and below.
2) Cotter Type This is standard for all single and multiple strand ANSI standard chain 100 and above and British standard chain 20B and above.
3) Offset Link An Offset link is a combination of roller link and pin This link is used when the chain length is odd number of pitches. It is recommended not to be use offset link whenever possible
4) Two Pitches Offset Link The unit consists of one offset link and one roller link. Pins are press-fitted into the link plates and the unit is more suitable for heavy impact load, high-speed driving than one pitch offset link.
OCM "DC" type "TC" type Roller Chains(Double Roller Chains & Triple Roller Chains)ระบบ BS/Single Pitch/Heavy Duty"DC" type roller chains consist of twice the number of side platesas the single strand chain and its working load is close to thestandard double strand chains: "DC" type and "TC" type roller chainsrun on standard roller chain sprockets and the ideal chain speedis less than 50 m/min.
OCM H (Heavy Duty) Roller ChainsH roller chains have increase link plate with thickness to providegreater capacity without fatigue failure. The link plate thicknessis that of the next larger size chains. Single strand roller chainsof H type run on standard roller chain sprockets.
Construction OCM Conveyors ChainsThere are many types of chain for conveyors applications but steelconveyors chains are popular and widely used. OCM FM and FEtypes of conveyors chains are superior to other types in strengthwear-resistance and the characteristic that changes materialand attachments are readily made according to an application.
Conveyor Type By Roller
1) R Roller The outside of diameter of roller is larger than the height of link plate. This type of conveyor is used for slat, pallet, tight conveyors.2) F Roller. Flanged roller This is used for inclined bucket and pan conveyors.3) S Roller The outside of diameter of roller is smaller than the height of link plate. This is used for bucket elevator, pan conveyors.
Standard Attachments:Attachments are attached according to requirementsThere are three basic types are standard.
1) Type A, A-1 indicates one hole, A-2 indicates two holes2) Type K, K-1 indicates one hole, K-2 indicates two holes3) Type G, G-2 indicates two holes, G-4 indicates four holes:
OCM Roller Chains 083 Simplex Narrow Connecting LinkMade in Japan: Specifications1) 1/2" x 3/16" Simplex Roller Chains2) Standard 083 Chain Pitch 1/2" 12-70 mm.
OCM SELUBE ROLLER CHAINS subject to special treatment has beenimproved its wear resistance more than 4 times, compare withOCM SELUBE CHAIN in the ordinary temperature range. It is suitableto extended the time for replacements of SELUBE chains, it is possibleto replace without facilities or equipment change.
OCM TR (Top of Roller Chains) ระบบ ANSI/Single Pitch/AttachmentTR (Top of Roller Chains) type roller chains are based on OCM standard roller chains with extra roller mounted on top of thechains. Top rollers are installed on the pins that connect SK-1extended attachment plates.
OCM Hollow Pin Double Pitch Chains (แบบลูกกลิ้งใหญ่)ความยาว 3 เมตร จำนวน 1 เส้น แถมฟรีข้อต่อโซ่เต็มข้อ C/L จำนวน 1ตัว
OCM โซ่เหล็ก Specialty (โซ่สั่งทำพิเศษ)OCM Products have three different type of 81X chains:1) "81X", 2) "81XH" 3) "81XH-S". Each type is designed for different link plate thickness and height to strength progressively higher load and durability.
โซ่ลูกกลิ้งความแม่นยำระยะฟิทช์สั้น (ซีรีส์ A) โซ่ขับเคลื่อน - โซ่ลูกกลิ้งความแม่นยำ 1) มีขอบเขตการใช้งานที่หลากหลาย 2) การสะสมเทคโนโลยี่ที่อุดมสมบูรณ์ 3) ความแข็งแรง ความเมื่อยล้าสูง และอายุการใช้งานยาวนาน
OCM F (Flat Sidebar Roller Chains) ระบบ BS/Single Pitch/Miscellaneous F type roller chain offers high fatigue resistanceand are suited for conveyor based products and/or sliding on a surface Chain No. 08B-1F, OCM 12B-1F
อ่านเพิ่มเติม
- สภาพสินค้ามือหนึ่ง
- ลงขายเมื่อ27 มี.ค. 2569 13:53 น.
- ตำแหน่งประกาศวังทองหลาง กรุงเทพมหานคร
- หมายเลขประกาศ371297569
