รายละเอียดสินค้า
OCM Coupling Chains (ยอยโซ่) เป็นผลิตภัณฑ์จากประเทศ ญุ่ีปุ่นประกอบด้วย ยอยโซ่ จำนวน 2 ตัว และ ตัวยอย จำนวน 1 ตัว

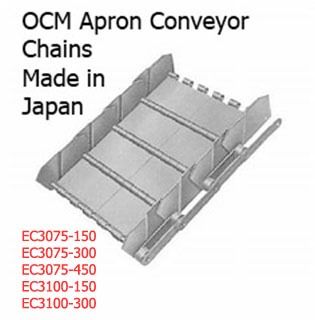

OCM Apron Chain Conveyorsเป็นสายพานลำเลียงที่มีลักษณะ เป็นโซ่ที่มีใบเหล็กรองรับเศษโลหะหรือ ชิ้นงาน แข็งแรง ทนต่อการกระแทก เหมาะสำหรับงานหนัก

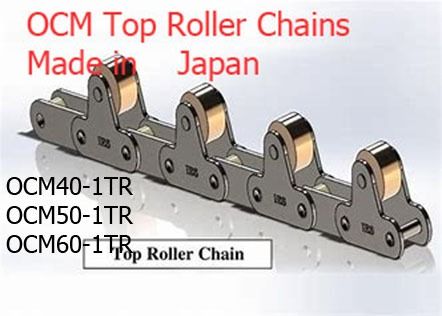

OCM TR (Top of Roller Chains) ระบบ ANSI/Single Pitch/AttachmentsTR (Top of Roller Chains) type roller chains are based OCMstandard roller chains with extra roller mounted on top ofthe chains. Top rollers are installed on the pins that connectSK-1 extended attachment plates.
Construction of OCM Roller ChainsRoller chain is made of roller links and pin linksRoller link consists of two bushing press-fitted into roller link platewith two free rotating roller over bushings. Pin link consists of two pin links plate into which two pins are press-fitted.
There are two types of pins: Rivet (Spring Clips) and Cotter Types1) Rivet (Spring Clips) This is standard for all single and multiple strand ANSI standard chain 80 and below and British standard chain 16B and below2) Cotter Type This is standard for all single and multiple strand ANSI standard chain 100 and above and British standard chain 20B and above3) Offset Link. This is a combination of roller link and pin link This link is used when the chain length is odd number of pitches It is recommended not to be used one offset link whenever possible.4) Two Pitches Offset Link The unit consists of one offset link and one roller link . Pins are press-fitted into the link plates and the unit is more suitable for heavy impact load and high-speed driving than one pitch offset link

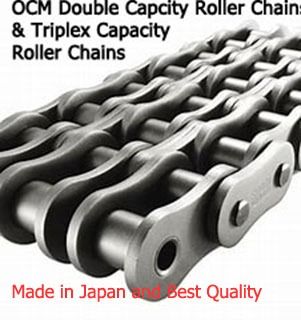

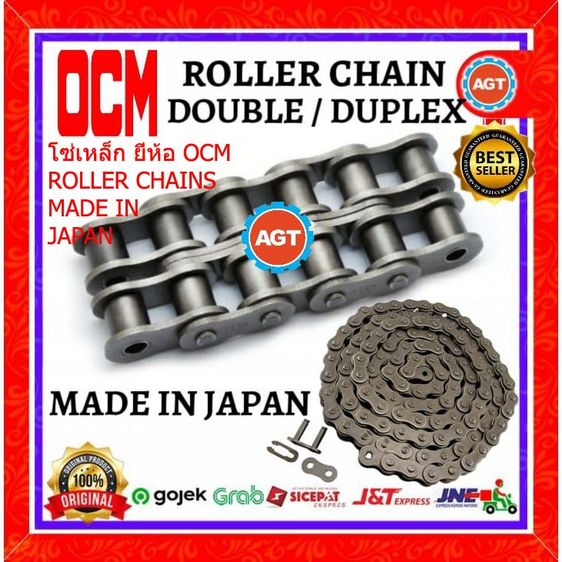

"DC" type and "TC" type Roller Chains (Double Roller Chains and Triple Roller Chains) ระบบ BS/Single Pitch/Heavy Duty DC type roller chain consists of twice the number of side plate as the single strand chains and its working load is close to the standard double strand chains. "DC" type and "TC" type roller chains run on standard roller chains sprockets and the ideal chain speed is less than 50 m/min.

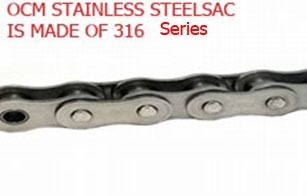

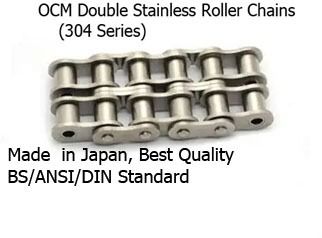

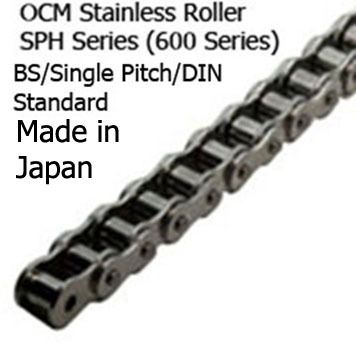

1) OCM Stainless Roller Chain SUS Series This chain is made of 304 (austenitic) stainless steel. This chain has excellent corrosive resistance and very low magnetic This chain is good for acid, alkali, water, etc. Heat resistance.2) OCM Stainless Roller Chain SAC Series This chain is made of 316 (austenitic) stainless steels. This is better in corrosive resistance than SUS Series and non-magnetic. Spring clips and cotter used are made of 304 stainless steels. Heat resistance.3) OCM Stainless Roller Chain SPH Series The pin, bush and roller of this chain are made of 600 Series precipitation hardened stainless with link plate of 304 stainless steel. Spring clips and cotters used are made of 304 stainless steel. Magnetic Better wear-resistance The working load of this chain is 1.5 times SUS Series

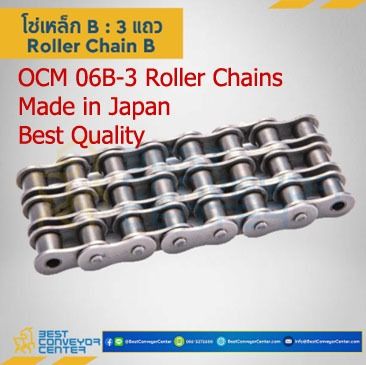

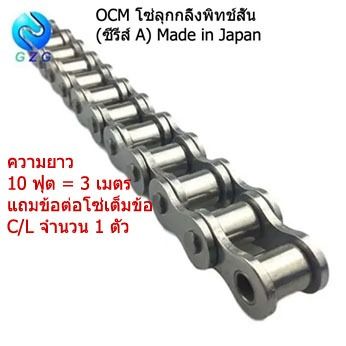

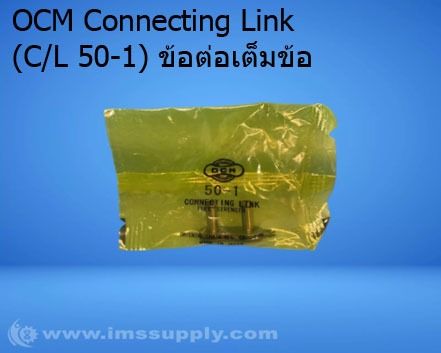

OCM 06B-3 Roller Chains ระบบ ANSI/Single Pitch/ANSI/DIN Steel Roller Chain No. 06B-3, 10ft/box ในกล่องบรรจุ โซ่ จำนวน 1เส้น ความยาว 10 ฟุต = 3 เมตร แถมฟรี ข้อต่อโซ่เต็มข้อ C/L จำนวน 1 ตัว OCM 20B-2R (โซ่เหล็กแถวคู่) Material S45C 1) Steel Roller Chain No. 20B-2R 10ft/box 2) ในกล่องบรรจุ โซ่จำนวน 1 เส้น และแถมฟรีข้อต่อโซ่เต็มข้อ C/L 1 ตัว 3) Standard: ISO/DIN/ANSI standard H type roller chains have increased link plate with thickness to provide greater capacity without fatigue failure. The link plate thickness is that of the next larger size chains. Single strand roller chains next larger size chains Single strand roller chains of H type run on standard roller chain sprockets.

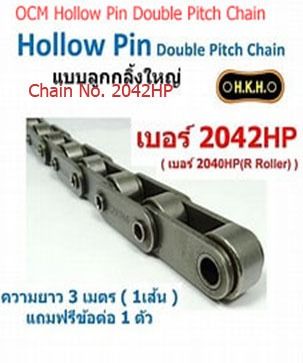

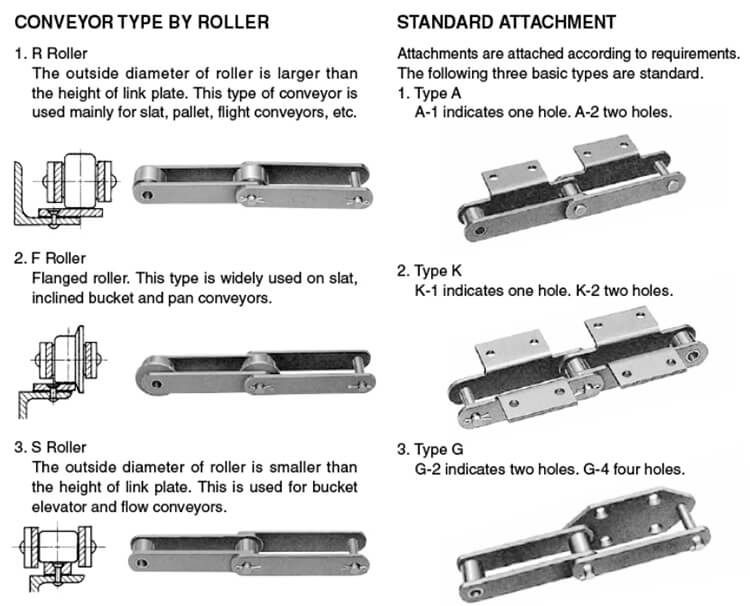

Construction of OCM Conveyors Chains There are many types of chain for conveyors applications but steel conveyors chains are popular and widely used. OCM FM and and FE conveyor types chains are superior to other type in strength wear-resistance and the characteristic that changes in material and attachments are readily made according to applications. Conveyors Type By Rollers 1) R Roller, The outside of diameter of roller is larger than the height of link plate This type of conveyor is used mainly for slat, pallet, tight conveyors 2) F Roller, Flanged roller. This type is widely used on slat, inclined bucket, pan conveyors 3) S Roller, The outside of diameter of roller is smaller than the height of link plate. This is used for bucket elevator, flow conveyorsStandard Attachments: Attachments are attached according to requirements There are three basic types are standard 1) Type A, A-1 indicates one hole, A-2 indicates two holes 2) Type K, K-1 indicates one hole, K-2 indicates two holes3) Type G, G-2 indicates two holes, G-4 indicates four holes OCM Hollow Pin Double Pitch Chains (แบบลูกกลิ้งใหญ่)ความยาว 3 เมตร จำนวน 1 เส้น แถมฟรี ข้อต่อโซ่เต็มข้อ จำนวน 1 ตัว

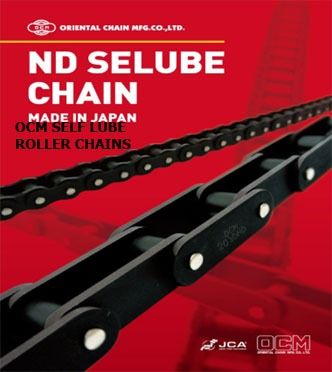

จำหน่ายโซ่ OCM ND SELUBE Chains subject to special treatmenthas been improved its wear resistance more than 4 times,compare with OCM SELUBE CHAIN. In the ordinary temperaturerange. It is suitable to extend the time for replacement of SELUBEchains, it is possible to replace without facilities or equipment change.

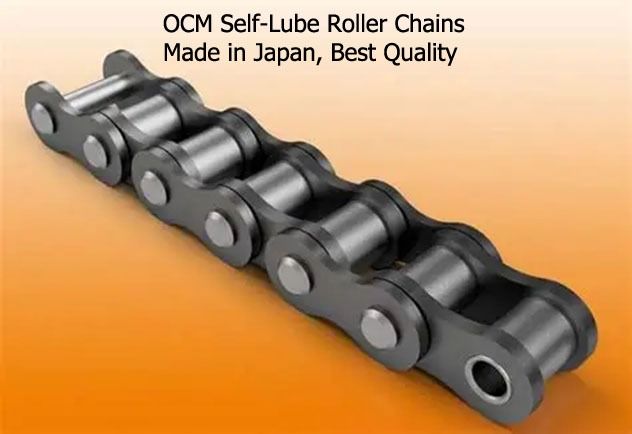

OCM Self-Lube Roller Chains ระบบ ANSI/Single Pitch/Lube/Free SLRSLR type roller chains carry its own high-quality lubrication impregnated bushing. The sintered bushing keeps lubricationin the critical bearing areas of the pin and bushing where it isneeded most. The plates are black oxide "Coated for extraprotection. SLR type roller chain is lubricated prior to deliver
อ่านเพิ่มเติม
OCM Apron Chain Conveyorsเป็นสายพานลำเลียงที่มีลักษณะ เป็นโซ่ที่มีใบเหล็กรองรับเศษโลหะหรือ ชิ้นงาน แข็งแรง ทนต่อการกระแทก เหมาะสำหรับงานหนัก
OCM TR (Top of Roller Chains) ระบบ ANSI/Single Pitch/AttachmentsTR (Top of Roller Chains) type roller chains are based OCMstandard roller chains with extra roller mounted on top ofthe chains. Top rollers are installed on the pins that connectSK-1 extended attachment plates.
Construction of OCM Roller ChainsRoller chain is made of roller links and pin linksRoller link consists of two bushing press-fitted into roller link platewith two free rotating roller over bushings. Pin link consists of two pin links plate into which two pins are press-fitted.
There are two types of pins: Rivet (Spring Clips) and Cotter Types1) Rivet (Spring Clips) This is standard for all single and multiple strand ANSI standard chain 80 and below and British standard chain 16B and below2) Cotter Type This is standard for all single and multiple strand ANSI standard chain 100 and above and British standard chain 20B and above3) Offset Link. This is a combination of roller link and pin link This link is used when the chain length is odd number of pitches It is recommended not to be used one offset link whenever possible.4) Two Pitches Offset Link The unit consists of one offset link and one roller link . Pins are press-fitted into the link plates and the unit is more suitable for heavy impact load and high-speed driving than one pitch offset link
"DC" type and "TC" type Roller Chains (Double Roller Chains and Triple Roller Chains) ระบบ BS/Single Pitch/Heavy Duty DC type roller chain consists of twice the number of side plate as the single strand chains and its working load is close to the standard double strand chains. "DC" type and "TC" type roller chains run on standard roller chains sprockets and the ideal chain speed is less than 50 m/min.
1) OCM Stainless Roller Chain SUS Series This chain is made of 304 (austenitic) stainless steel. This chain has excellent corrosive resistance and very low magnetic This chain is good for acid, alkali, water, etc. Heat resistance.2) OCM Stainless Roller Chain SAC Series This chain is made of 316 (austenitic) stainless steels. This is better in corrosive resistance than SUS Series and non-magnetic. Spring clips and cotter used are made of 304 stainless steels. Heat resistance.3) OCM Stainless Roller Chain SPH Series The pin, bush and roller of this chain are made of 600 Series precipitation hardened stainless with link plate of 304 stainless steel. Spring clips and cotters used are made of 304 stainless steel. Magnetic Better wear-resistance The working load of this chain is 1.5 times SUS Series
OCM 06B-3 Roller Chains ระบบ ANSI/Single Pitch/ANSI/DIN Steel Roller Chain No. 06B-3, 10ft/box ในกล่องบรรจุ โซ่ จำนวน 1เส้น ความยาว 10 ฟุต = 3 เมตร แถมฟรี ข้อต่อโซ่เต็มข้อ C/L จำนวน 1 ตัว OCM 20B-2R (โซ่เหล็กแถวคู่) Material S45C 1) Steel Roller Chain No. 20B-2R 10ft/box 2) ในกล่องบรรจุ โซ่จำนวน 1 เส้น และแถมฟรีข้อต่อโซ่เต็มข้อ C/L 1 ตัว 3) Standard: ISO/DIN/ANSI standard H type roller chains have increased link plate with thickness to provide greater capacity without fatigue failure. The link plate thickness is that of the next larger size chains. Single strand roller chains next larger size chains Single strand roller chains of H type run on standard roller chain sprockets.
Construction of OCM Conveyors Chains There are many types of chain for conveyors applications but steel conveyors chains are popular and widely used. OCM FM and and FE conveyor types chains are superior to other type in strength wear-resistance and the characteristic that changes in material and attachments are readily made according to applications. Conveyors Type By Rollers 1) R Roller, The outside of diameter of roller is larger than the height of link plate This type of conveyor is used mainly for slat, pallet, tight conveyors 2) F Roller, Flanged roller. This type is widely used on slat, inclined bucket, pan conveyors 3) S Roller, The outside of diameter of roller is smaller than the height of link plate. This is used for bucket elevator, flow conveyorsStandard Attachments: Attachments are attached according to requirements There are three basic types are standard 1) Type A, A-1 indicates one hole, A-2 indicates two holes 2) Type K, K-1 indicates one hole, K-2 indicates two holes3) Type G, G-2 indicates two holes, G-4 indicates four holes OCM Hollow Pin Double Pitch Chains (แบบลูกกลิ้งใหญ่)ความยาว 3 เมตร จำนวน 1 เส้น แถมฟรี ข้อต่อโซ่เต็มข้อ จำนวน 1 ตัว
จำหน่ายโซ่ OCM ND SELUBE Chains subject to special treatmenthas been improved its wear resistance more than 4 times,compare with OCM SELUBE CHAIN. In the ordinary temperaturerange. It is suitable to extend the time for replacement of SELUBEchains, it is possible to replace without facilities or equipment change.
OCM Self-Lube Roller Chains ระบบ ANSI/Single Pitch/Lube/Free SLRSLR type roller chains carry its own high-quality lubrication impregnated bushing. The sintered bushing keeps lubricationin the critical bearing areas of the pin and bushing where it isneeded most. The plates are black oxide "Coated for extraprotection. SLR type roller chain is lubricated prior to deliver
อ่านเพิ่มเติม
